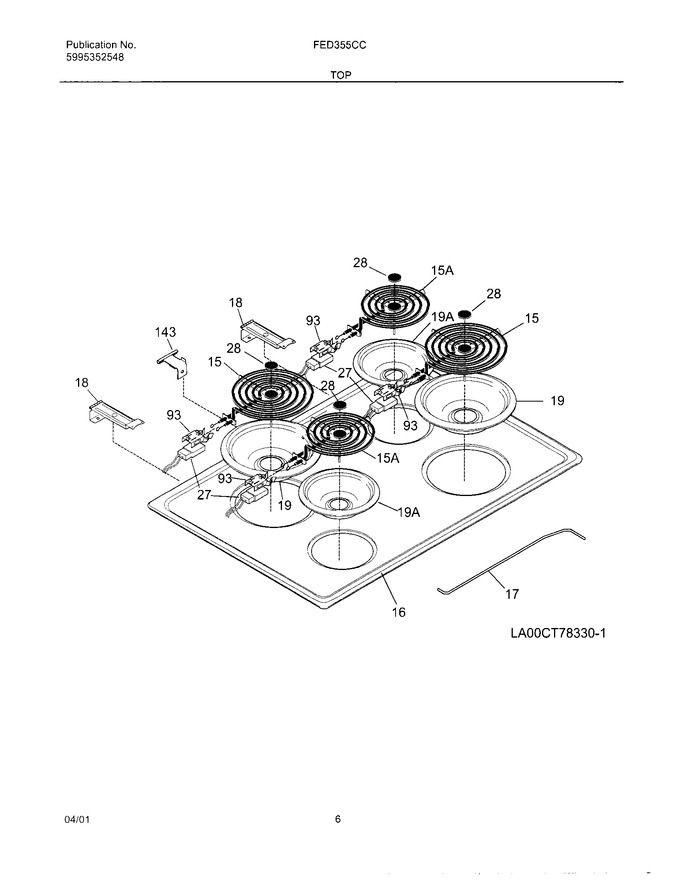

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	316442301		Element,coil ,large/8 Inch ,surface ,2600 W,240 V   (Replaces: 5303309001)			Immediately	$ 44.39
15	PS12-4BK		Element,coil ,small/6 Inch ,surface ,1500 W   (Replaces: 5303309000)			Immediately	$ 35.96
16	5303307287		Main Top, Black		Appelez-nous	-
17	3051554		Rod,support ,main Top Panel		Appelez-nous	-
18	5303305530		Bracket-hinge, Main Top, (2)		Appelez-nous	-
19	316048413		Pan-surface Element,large ,chrome   (Replaces: 318067020)			Immediately	$ 9.85
19	316048414		Pan-surface Element,small ,chrome   (Replaces: 318067021)			Immediately	$ 16.11
27	RR500		Terminal Block, Surface Element   (Replaces: 5303323704)			Immediately	$ 9.42
28	5303301461		Medallion, Surface Element		Appelez-nous	-
93	318122500		Support,terminal Block ,(4)		Appelez-nous	-
143	5303300148		Bracket-hinge Support		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303288566		Screw,6-20 X 0.250   (Replaces: 5303320848)				$ 2.12
