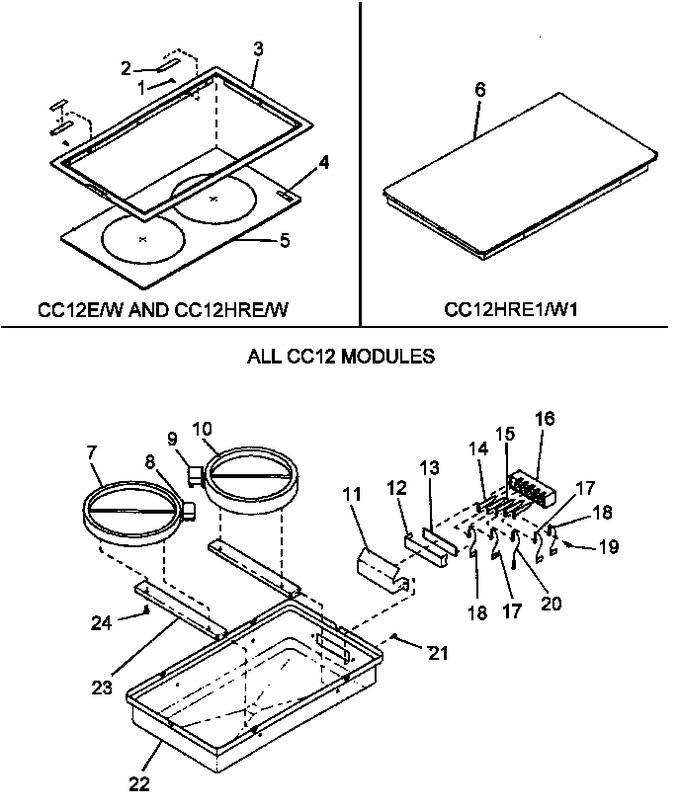

01 - Glass Cooktop Module - All Cc12


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	315187W		Assy, Frame & Glass		Appelez-nous	-
7	Y0307265		Assy, Haloring Heater Element		Appelez-nous	-
8	10061010		Limiter, Halogen Element		Appelez-nous	-
9	0316685		Limiter		Appelez-nous	-
10	Y0315184		Element, Ribbon 1500w		Appelez-nous	-
11	0061496		Bracket, Plug Blk. Mtg.		Appelez-nous	-
13	Y0041994		Insulator-cooktop Module		Appelez-nous	-
14	Y0052040		Contact, Spade-power		Appelez-nous	-
15	Y0052041		Contact, Spade-ground				$ 4.83
16	Y0314569		Module, Plug Block		Appelez-nous	-
17	0043578		Harness, Wire		Appelez-nous	-
18	0043579		Harness, Wire		Appelez-nous	-
19	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0041768)			Immediately	$ 6.47
20	0043666		5644044 Jumper Wire		Appelez-nous	-
21	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: Y0041809)			Immediately	$ 12.65
22	300747E		Burner Pan, Module		Appelez-nous	-
23	Y0315186		Brkt, Element Mtg		Appelez-nous	-
24	0306212		Screw, Shoulder		Appelez-nous	-
NI	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
NI	Y0306683		Spring, Element		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
