SELECT A DIAGRAM

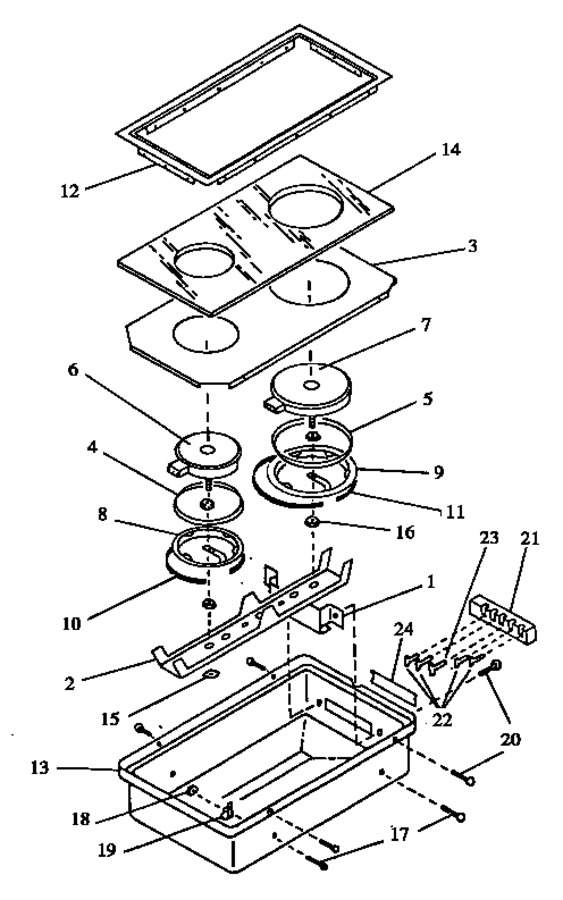

01 - Page 12
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 0061496 | Bracket, Plug Blk. Mtg. |
|
- | |||||
| 2 | Y0061495 | Bracket, Elem. Mtg. |
|
- | |||||
| 3 | 0061494 | Support, Glass |
|
- | |||||
| 4 | 061613B | Ring Small Trim (black) |
|
- | |||||
| 5 | 061612B | Ring Large Trim (black) |
|
- | |||||
| 6 | WP3147131 | Element, Small (Replaces: Y0061611) |
|
$ 244.76 | |||||
| 7 | 0061610 | Element, Large |
|
- | |||||
| 8 | 0061608 | Gasket, Ring |
|
- | |||||
| 9 | 0061609 | Gasket, Ring |
|
- | |||||
| 10 | Y0059631 | Gasket |
|
- | |||||
| 11 | Y0059632 | Gasket |
|
- | |||||
| 12 | 300983B | Module Top-elect (blk Enamel) |
|
- | |||||
| 13 | 300749B | Pan, Module |
|
- | |||||
| 14 | Y0061576 | Glass, Top |
|
- | |||||
| 15 | 0061614 | Spring, Leaf |
|
- | |||||
| 16 | 0061486 | Nut |
|
- | |||||
| 17 | 0041833 | Screw 8-32x.375 Dk Gl Dr Hdl |
|
- | |||||
| 18 | WP488130 | Nut K (Replaces: Y0097886) |
|
$ 6.27 | |||||
| 19 | Y0074685 | Wire Clamp, Insulated |
|
- | |||||
| 19 | Y0068513 | Clamp, Wire-insulate |
|
- | |||||
| 20 | Y0073657 | Screw, No.6-20 X .375 Pan Hd Ph |
|
- | |||||
| 21 | Y0042211 | Module, Plug Block |
|
- | |||||
| 22 | Y0052040 | Contact, Spade-power |
|
- | |||||
| 23 | Y0052041 | Contact, Spade-ground |
|
$ 4.83 | |||||
| 24 | Y0041994 | Insulator-cooktop Module |
|
- | |||||
| NI | Y0052966 | Owner`s Guide, Xst102 |
|
- | |||||
| NI | 0061423 | Electric Harness |
|
- | |||||
| NI | WP3400882 | Screw, No.8-32 X 3/16 Pph (Replaces: Y0041768) |
|
Immediately | $ 6.47 | ||||
| NI | Y0308058 | Rtv (blk) |
|
- |
