SELECT A DIAGRAM

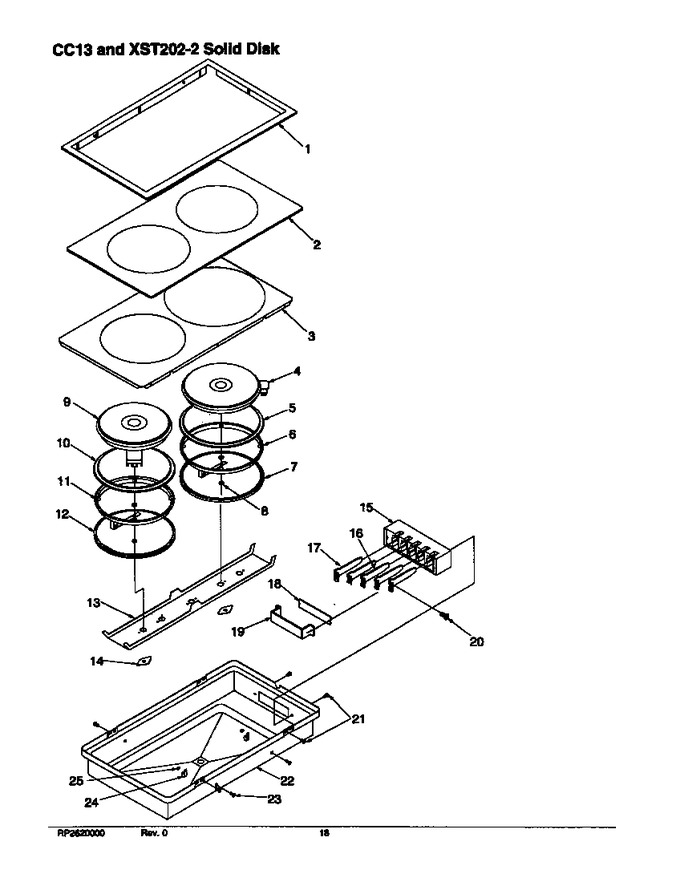

01 - Cc13 And Xst202-2 Solid Disk
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 300983B | Module Top-elect (blk Enamel) |
|
- | |||||
| 2 | Y0061576 | Glass, Top |
|
- | |||||
| 3 | 061494B | Support Glass |
|
- | |||||
| 4 | Y0305236 | Element 8`` 2600w |
|
- | |||||
| 5 | 061612B | Ring Large Trim (black) |
|
- | |||||
| 6 | 0061609 | Gasket, Ring |
|
- | |||||
| 7 | Y0059632 | Gasket |
|
- | |||||
| 8 | 31750109 | Nut, Hex M6 X 1 |
|
- | |||||
| 9 | Y0305257 | Element 6`` 1500w |
|
- | |||||
| 10 | C2740301 | Ring Small Trim (black) |
|
- | |||||
| 11 | 0061608 | Gasket, Ring |
|
- | |||||
| 12 | Y0059631 | Gasket |
|
- | |||||
| 13 | Y0061495 | Bracket, Elem. Mtg. |
|
- | |||||
| 14 | 0061614 | Spring, Leaf |
|
- | |||||
| 15 | Y0314569 | Module, Plug Block |
|
- | |||||
| 16 | Y0052041 | Contact, Spade-ground |
|
$ 4.83 | |||||
| 17 | Y0052040 | Contact, Spade-power |
|
- | |||||
| 18 | Y0041994 | Insulator-cooktop Module |
|
- | |||||
| 19 | 0061496 | Bracket, Plug Blk. Mtg. |
|
- | |||||
| 20 | WP3400882 | Screw, No.8-32 X 3/16 Pph (Replaces: 31750401) |
|
Immediately | $ 6.47 | ||||
| 21 | 31750309 | Screw, No.6-20 X .375 Pan Hd |
|
- | |||||
| 22 | 31745301 | Pan, Module (galv) |
|
- | |||||
| 23 | 0041833 | Screw 8-32x.375 Dk Gl Dr Hdl |
|
- | |||||
| 24 | Y0074685 | Wire Clamp, Insulated |
|
- | |||||
| 25 | WP488130 | Nut, Hex Keps No.8-32 (Replaces: 31750118) |
|
$ 6.27 | |||||
| NI | 0061423 | Electric Harness |
|
- | |||||
| NI | Y0308058 | Rtv (blk) |
|
- |
