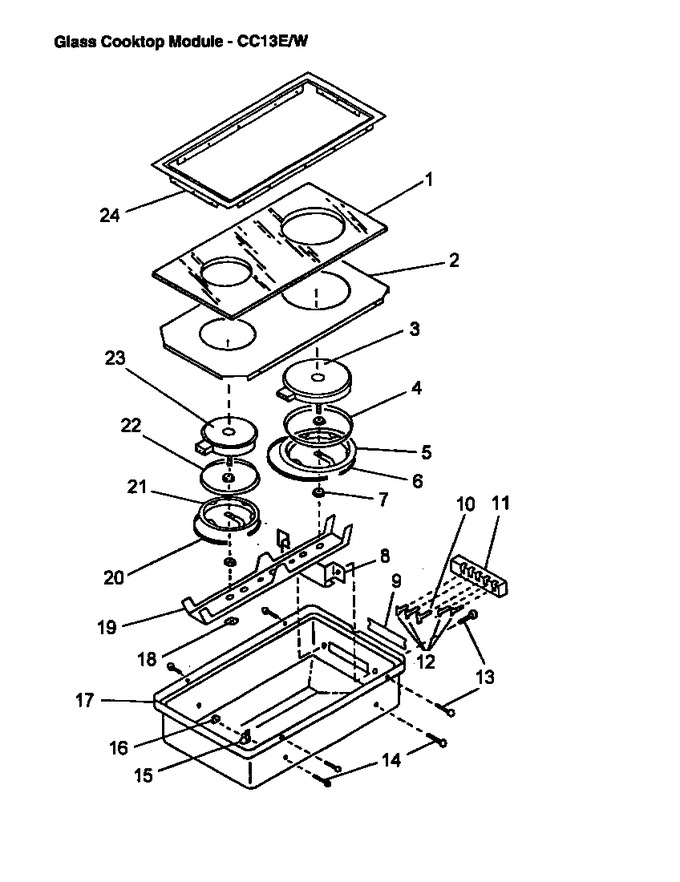

01 - Glass Cooktop Module - Cc13e/w


02 - Miscellaeous Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0305235		Top, Glass (wht)		Appelez-nous	-
2	0061494		Support, Glass		Appelez-nous	-
3	Y0305236		Element 8`` 2600w		Appelez-nous	-
5	0061609		Gasket, Ring		Appelez-nous	-
6	Y0059632		Gasket		Appelez-nous	-
7	0061486		Nut		Appelez-nous	-
8	0061496		Bracket, Plug Blk. Mtg.		Appelez-nous	-
9	Y0041994		Insulator-cooktop Module		Appelez-nous	-
10	Y0052041		Contact, Spade-ground				$ 4.83
11	Y0314569		Module, Plug Block		Appelez-nous	-
12	Y0052040		Contact, Spade-power		Appelez-nous	-
13	Y0073657		Screw, No.6-20 X .375 Pan Hd Ph		Appelez-nous	-
14	0041833		Screw 8-32x.375 Dk Gl Dr Hdl		Appelez-nous	-
15	Y0068513		Clamp, Wire-insulate		Appelez-nous	-
15	Y0074685		Wire Clamp, Insulated		Appelez-nous	-
16	WP488130		Nut K   (Replaces: Y0097886)				$ 6.27
17	300749B		Pan, Module		Appelez-nous	-
18	0061614		Spring, Leaf		Appelez-nous	-
19	Y0061495		Bracket, Elem. Mtg.		Appelez-nous	-
20	Y0059631		Gasket		Appelez-nous	-
21	0061608		Gasket, Ring		Appelez-nous	-
23	Y0305257		Element 6`` 1500w		Appelez-nous	-
24	300983W		Module Top-trim Only-(wht)		Appelez-nous	-
NI	Y0308058		Rtv (blk)		Appelez-nous	-
NI	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0041768)			Immediately	$ 6.47
NI	0041786		Tapng Screw 6 32x1/2 Ph P Hd		Appelez-nous	-
NI	0061423		Electric Harness		Appelez-nous	-
