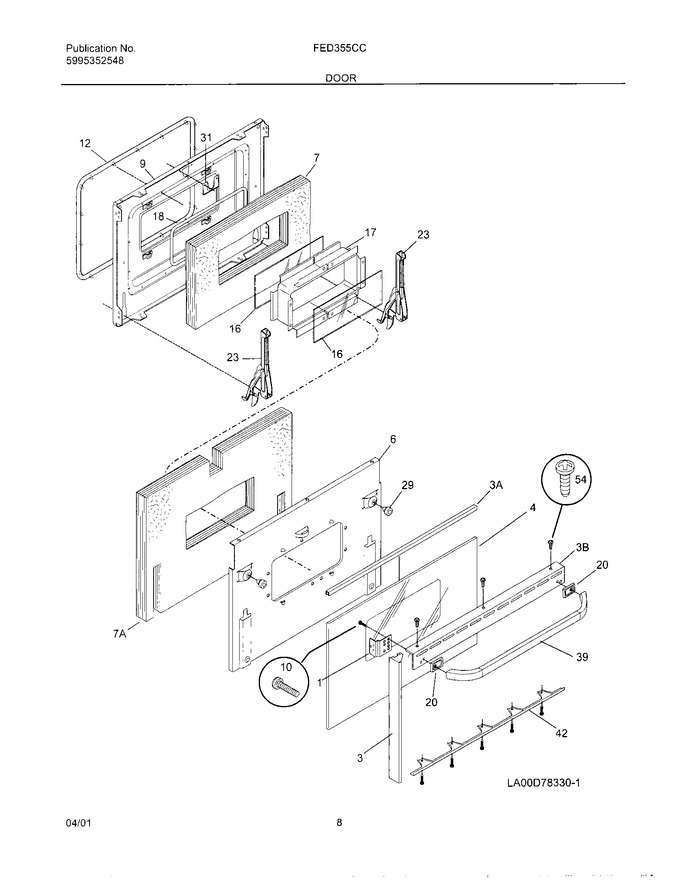

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318043100		Bracket-trim, Handle, (2)				$ 52.87
3	318028900		Trim-oven Door,upper				$ 34.82
3	318049020		Trim-oven Door, White, Upper				$ 156.82
3	318049202		Trim-oven Door, White, Side				$ 7.93
4	5303311191		Glass-oven Door, White, Outer				$ 548.10
6	318057010		Shield,insulation ,door		Appelez-nous	-
7	5303311150		Insulation,oven Door ,full Length		Appelez-nous	-
7	5303310532		Insulation,oven Door ,cavity		Appelez-nous	-
9	318157013		Liner,door				$ 291.59
10	732022890		Screw,10-24 X 0.625 ,handle Mtg   (Replaces: 5303324305)			Immediately	$ 1.84
12	318053103		Gasket,oven Door Seal			Immediately	$ 150.03
16	5303310533		Glass,oven Door ,6.50 X 15.50 ,inner ,heat Barrier				$ 220.55
17	318139000		Spacer,oven Door Glass ,inner Frame		Appelez-nous	-
18	5303310531		Gasket,door Glass Seal ,inner		Appelez-nous	-
20	318014301		Spacer,handle ,white ,(2)				$ 48.88
23	318024700		Hinge-oven Door, Assembly		Appelez-nous	-
29	318147410		Bumper,base		Appelez-nous	-
31	5303310536		Latch-door				$ 30.66
39	316091119		Handle,oven Door ,white		Appelez-nous	-
42	5303311194		Trim,oven Door ,white ,lower		Appelez-nous	-
54	316021109		Screw,8-18 X 17/32 ,white   (Replaces: 5303317175)			Immediately	$ 27.50
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303307980		Screw,8-32 X 0.437			Immediately	$ 14.18
