SELECT A DIAGRAM

01 - Cover

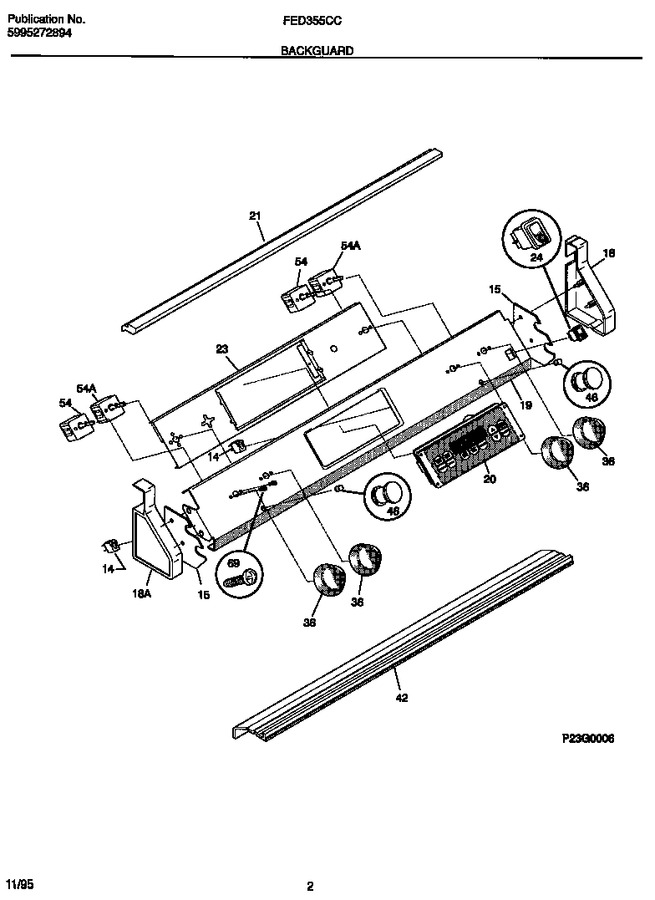

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5303051533		Light-lamp/indicator				$ 53.81
15	5303311123		Support-backguard, (2)		Appelez-nous	-
18	5303304669		End Cap, Almond, Rh		Appelez-nous	-
18	5303304672		End Cap, Almond, Lh		Appelez-nous	-
19	318005502		Panel-control, Almond		Appelez-nous	-
20	5303311176		Clock/timer, Electronic		Appelez-nous	-
21	5303304689		Trim-backguard, Top		Appelez-nous	-
23	318015000		Bracket-clock Mtg		Appelez-nous	-
24	5303304693		Switch-light/lamp, Rocker Type, Almond		Appelez-nous	-
36	5303304674		Knob-control, (4)		Appelez-nous	-
42	5303304691		Trim-vent		Appelez-nous	-
46	5303271239		Lens-light/lamp, Indicator		Appelez-nous	-
54	5303300157		Switch-surface Unit, Small		Appelez-nous	-
54	5303300158		Switch-surface Unit, Large		Appelez-nous	-
69	5303323137		Screw-switch Mtg, Sw To Cntl Pnl, (6)   (Replaces: 5303305528)				$ 11.88

    View Diagram in Separate Window       Print Part List
