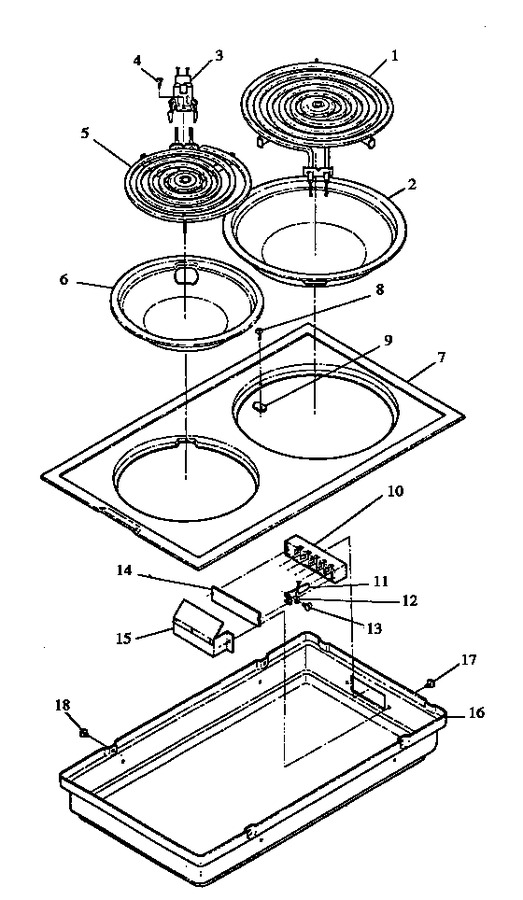

01 - Page 10
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3191454 | Element, 5 Turn (2100w) 8`` (Replaces: Y0051570) |
|
$ 163.63 | |||||
| 2 | W10291024 | Burner, Bowl 8`` (lt Gry) (Replaces: 305839T) |
|
Immediately | $ 49.90 | ||||
| 3 | 330031 | Kit, Top Element Term Block (Replaces: Y0089336) |
|
Immediately | $ 14.48 | ||||
| 4 | Y0041785 | Screw, No.6-32 X .250 Pan Hd Ph |
|
- | |||||
| 5 | WPW10259868 | Element, 4 Turn 1500w 6`` (Replaces: Y0051576) |
|
Immediately | $ 112.28 | ||||
| 6 | W10291024 | Burner Bowl 6`` (lt Gry) (Replaces: 305837T) |
|
Immediately | $ 49.90 | ||||
| 7 | 300984W | Module Top, Coil Element (wht) |
|
- | |||||
| 8 | 0041786 | Tapng Screw 6 32x1/2 Ph P Hd |
|
- | |||||
| 9 | 0041859 | Weld Nut 6-32 Can Tops |
|
- | |||||
| 10 | Y0042211 | Module, Plug Block |
|
- | |||||
| 11 | Y0052040 | Contact, Spade-power |
|
- | |||||
| 11 | Y0052041 | Contact, Spade-ground |
|
$ 4.83 | |||||
| 12 | 0043666 | 5644044 Jumper Wire |
|
- | |||||
| 13 | WP3400882 | Screw, No.8-32 X 3/16 Pph (Replaces: Y0041768) |
|
Immediately | $ 6.47 | ||||
| 14 | Y0041994 | Insulator-cooktop Module |
|
- | |||||
| 15 | Y0040964 | Plug Block Mtg Brkt |
|
- | |||||
| 16 | 300747E | Burner Pan, Module |
|
- | |||||
| 17 | W11245710 | Screw, No.8-18 X 3/8 P Trs Hd Lp (Replaces: Y0041809) |
|
Immediately | $ 12.65 | ||||
| 18 | Y0041769 | Screw 6 32x5/16 Ph Fh |
|
- |
