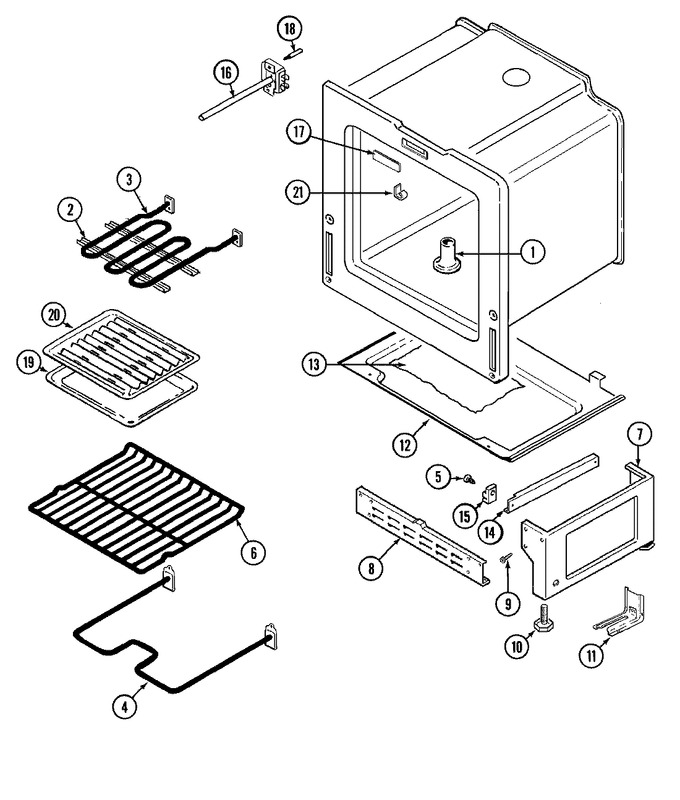

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	12		Immediately	$ 12.62
1	8026P019-60		Tube, Vent	12	Appelez-nous	-
2	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	12		Immediately	$ 12.62
2	3807F389-45		Support, Element	12	Appelez-nous	-
3	Y04000057		Element, Broil	12			$ 94.48
3	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	12		Immediately	$ 12.62
4	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	12		Immediately	$ 12.62
4	WP74003019		Element, Bake   (Replaces: Y04000058)	12		Immediately	$ 51.10
5	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	12		Immediately	$ 12.62
5	WPW10348409		Screw (8abx13/16-zn)   (Replaces: 74001449)	12		Immediately	$ 6.98
6	WPW10282492		Rack, Oven   (Replaces: 74001757)	12		Immediately	$ 65.15
7	4020W017-80		Pedestal, Sides	12	Appelez-nous	-
7	74003016		Pedestal, Side	14	Appelez-nous	-
8	4020F001-80		Pedestal, Front/rear	12	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	12		Immediately	$ 12.62
10	W11665456		Leg, Leveling   (Replaces: 74002373)	14		Immediately	$ 25.30
10	74001311		Leg, Leveling	12	Appelez-nous	-
11	WP3801F656-51		Bracket, Anti-tip   (Replaces: 74002311)	12		Immediately	$ 4.69
11	WP7101P485-60		Screw   (Replaces: 7101P344-60)	12			$ 26.33
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	12		Immediately	$ 12.62
12	3804F112-51		Retainer, Insulation	12	Appelez-nous	-
13	8312P058-60		Foil, Insulation Retainer	12	Appelez-nous	-
14	3406F028-51		Runner, Drawer	12	Appelez-nous	-
15	74002312		Support, Drawer	12			$ 27.09
16	7404P057-60		Thermostat, Redundant	12	Appelez-nous	-
17	7718P013-60		Cover, Door Lock	12	Appelez-nous	-
18	7101P337-60		Screw	12	Appelez-nous	-
19	Y3401F02019		Pan, Broil	12	Appelez-nous	-
20	Y3413F01619		Insert, Broil Pan	12	Appelez-nous	-
21	WP7112P004-60		Clip, Thermostat   (Replaces: 7112P004-60)	12		Immediately	$ 11.07
