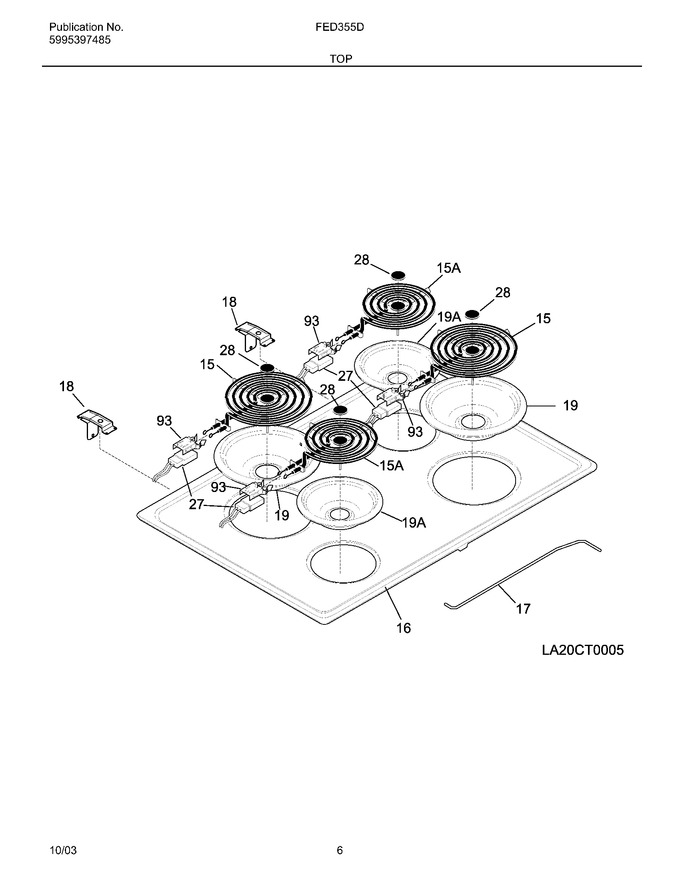

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318225601		Main Top,black		Appelez-nous	-
17	3051554		Rod,support ,main Top Panel		Appelez-nous	-
18	318227700		Hinge,maintop ,(2)		Appelez-nous	-
28	5303301461		Medallion, Surface Element		Appelez-nous	-
93	318122500		Support,terminal Block ,(4)		Appelez-nous	-
F15	316442301		Element,surface ,large/8 Inch ,2600 W ,240 V   (Replaces: 5303309001)			Immediately	$ 44.39
F15A	PS12-4BK		Element,surface ,small/6 Inch ,1500 W   (Replaces: 5303309000)			Immediately	$ 35.96
F19	316048413		Pan,surface Element ,large ,chrome   (Replaces: 318067056)			Immediately	$ 9.85
F19A	316048414		Pan,surface Element ,small ,chrome   (Replaces: 318067046)			Immediately	$ 16.11
F27	318223414		Terminal Block,surface Element ,36`` ,white Leads		Appelez-nous	-
F27	318223415		Terminal Block,surface Element ,36`` ,yellow Leads		Appelez-nous	-
F27	318223418		Terminal Block,surface Element ,42`` ,brown Leads		Appelez-nous	-
F27	318223413		Terminal Block,surface Element ,48`` ,orange Leads				$ 53.97
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
