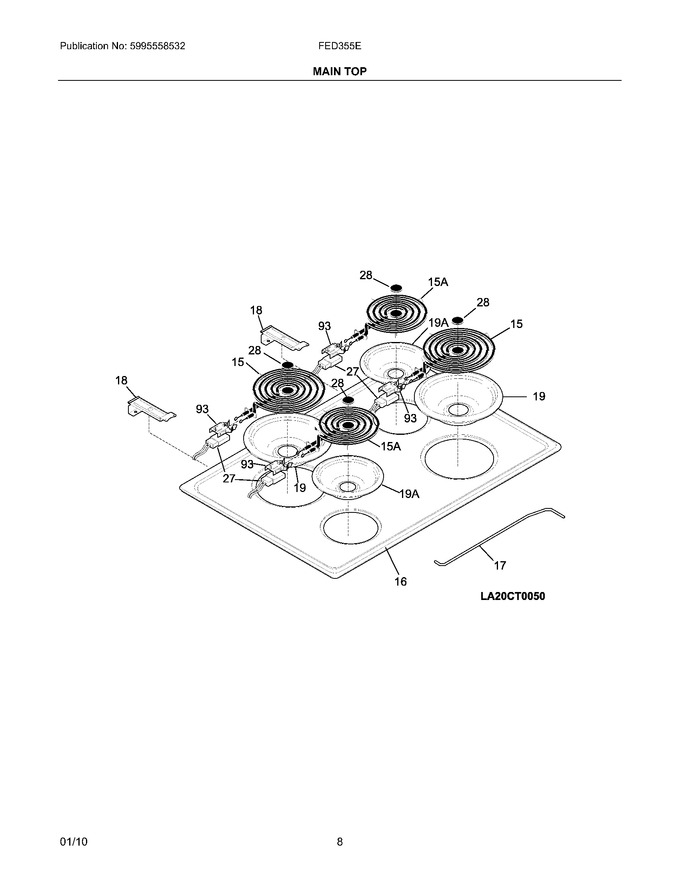

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318225601		Main Top,black		Appelez-nous	-
17	3051554		Rod,support ,main Top Panel		Appelez-nous	-
18	318227710		Hinge,maintop ,(2)		Appelez-nous	-
19	316048413		Pan,surface Element ,large ,chrome   (Replaces: 318067018)			Immediately	$ 9.85
28	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
93	318366410		Support,terminal Block ,(4)				$ 13.47
19A	318067017		Pan,surface Element ,small ,chrome		Appelez-nous	-
F15	316442301		Element,surface ,8`` ,large   (Replaces: 318372214)			Immediately	$ 44.39
F15A	318372211		Element,surface ,6`` ,small			Immediately	$ 45.14
F27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
FNI	318301002		Wiring Harness,surface Units		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
