01 - Body
02 - Control Panel

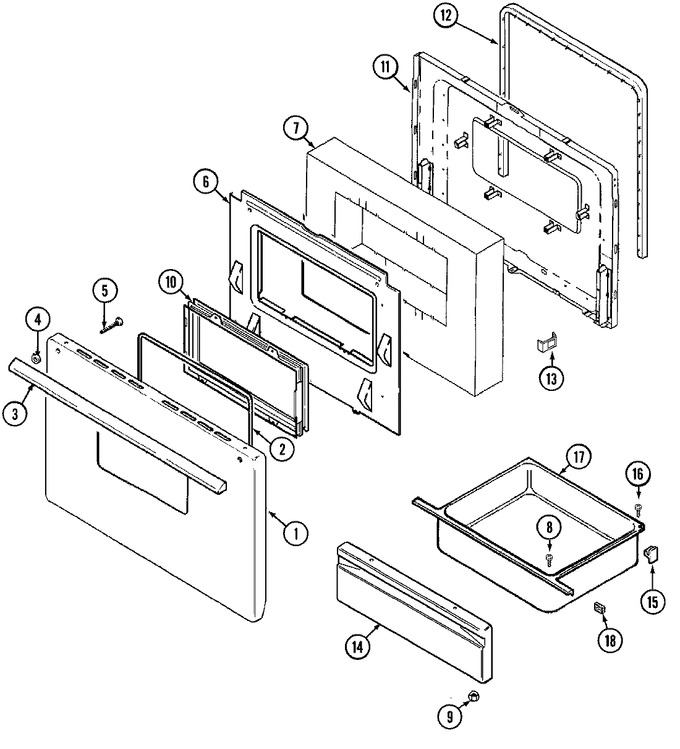

03 - Door/drawer (cc3531wux)
04 - Door/drawer (cc3531xux)
05 - Oven/base
06 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2401F121-71 | Panel, Door (wht) | 10 |
|
- | ||||
| 2 | 7201P017-60 | Gasket, Window | 10 |
|
$ 52.69 | ||||
| 5 | WP3387230 | Screw (Replaces: 74002483) | 10 |
|
Immediately | $ 7.69 | |||
| 6 | 3601F236-47 | Baffle, Door | 10 |
|
- | ||||
| 7 | 7002P156-60 | Insulation, Door | 10 |
|
- | ||||
| 8 | 7101P037-60 | Screw, Stainless | 10 |
|
- | ||||
| 9 | W10080180 | Nut (Replaces: 7103P034-60) | 10 |
|
$ 12.13 | ||||
| 11 | 2402W212-19 | Lining, Door | 10 |
|
- | ||||
| 12 | WP7212P043-60 | Seal, Door (Replaces: 7212P043-60) | 10 |
|
Immediately | $ 56.83 | |||
| 13 | 7112P034-60 | Clip, Door | 10 |
|
- | ||||
| 14 | 2416F039-62 | Panel, Drawer (wht) | 10 |
|
- | ||||
| 15 | 8004P026-60 | Support, Drawer (rear) | 10 |
|
$ 9.29 | ||||
| 16 | 7101P329-60 | Screw | 10 |
|
- | ||||
| 17 | 3405F019-80 | Drawer, Storage | 10 |
|
- | ||||
| 18 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 10 |
|
$ 11.95 |
