SELECT A DIAGRAM

01 - Cover

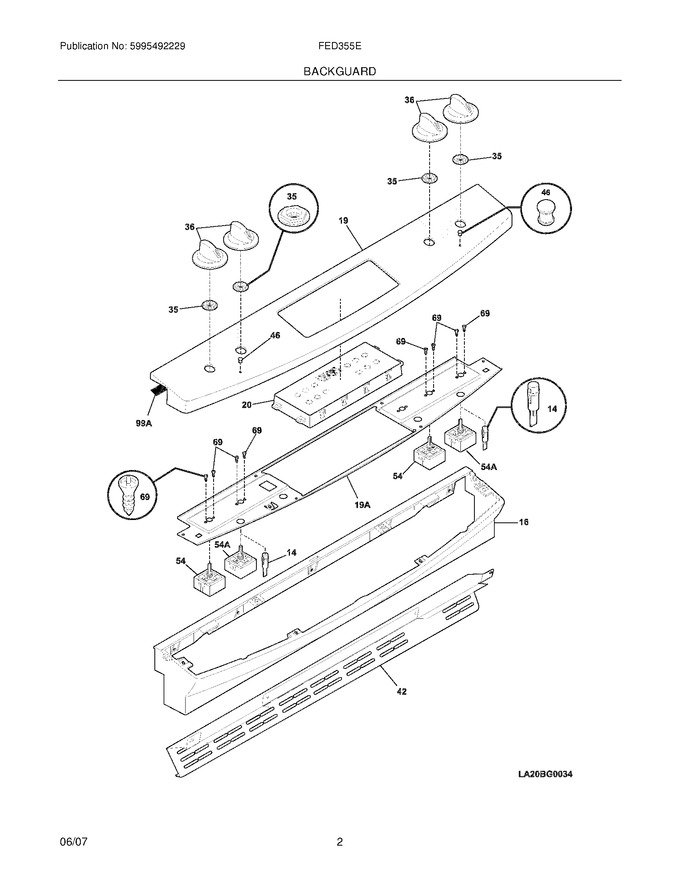

03 - Backguard


05 - Body


07 - Maintop


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318299100		Console,assy. ,white				$ 418.11
19	318235187		Panel,control ,white				$ 230.27
35	318183101		Support,glass ,white ,(4)				$ 14.07
36	316223028		Knob,control ,white				$ 60.67
42	318298011		Trim,vent ,black ,upper				$ 49.19
46	318228301		Lens,indicator Light				$ 11.29
69	5303288565		Screw, 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
19A	9910999SI		Panel,control Mtg.   (Replaces: 318224401)		Appelez-nous	-
99A	318223900		Gasket,dark Grey			Immediately	$ 82.80
F14	318293901		Light,indicator ,125v ,(2)				$ 53.66
F20	318185452		Clock/timer,electronic ,white ,es300		Appelez-nous	-
F24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
F54	903136-9010		Switch,surface Unit ,small ,single   (Replaces: 318369615)			Immediately	$ 107.42
F54A	903136-9020		Switch,surface Unit ,large ,single   (Replaces: 318369616)			Immediately	$ 124.39
NI	318301100		Wiring Harness,backguard		Appelez-nous	-
NI	318224812		Harness,wiring ,timer				$ 196.88
NI	318224815		Harness,wiring ,infinite Switch		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
NI	5304453707		Screw,control Mtg.			Immediately	$ 15.92
NI	316419137		Overlay,clock ,white ,es300   (Replaces: 316419104)			Immediately	$ 31.34
NI	5304447071		Clip,console ,(2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
