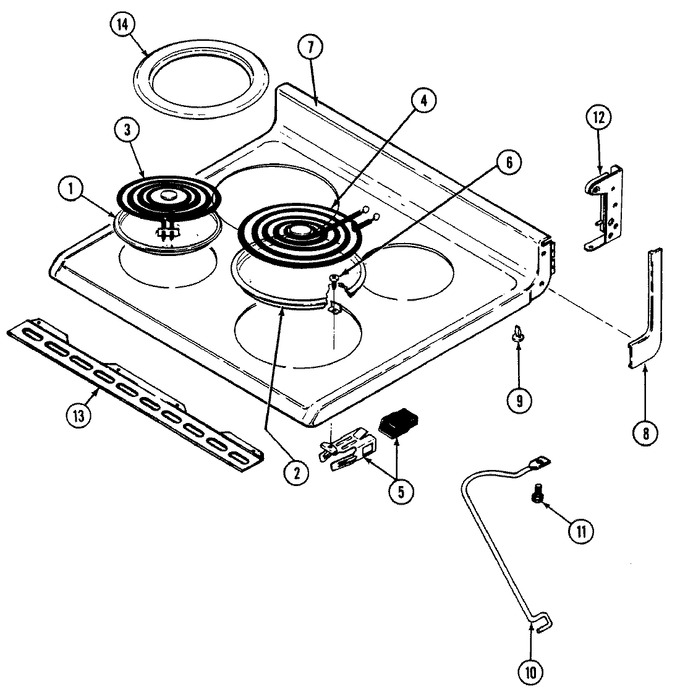

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | WPW10259868 | Element (6``) (Replaces: 7406P069-60) | 01 |
|
Immediately | $ 112.28 | |||
| 3 | WPW10259868 | Element (6``) (Replaces: 7406P087-60) | 14 |
|
Immediately | $ 112.28 | |||
| 4 | WP12001560 | Element (8``) (Replaces: 7406P088-60) | 14 |
|
$ 172.17 | ||||
| 4 | WPW10259865 | Element (8``) (Replaces: 7406P070-60) | 01 |
|
Immediately | $ 105.92 | |||
| 5 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 01 |
|
Immediately | $ 28.45 | |||
| 6 | WP74004005 | Screw (Replaces: 7118P013-60) | 01 |
|
$ 6.95 | ||||
| 8 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 01 |
|
$ 7.68 | ||||
| 9 | 8016P013-60 | Glide | 01 |
|
- | ||||
| 10 | 7809P014-60 | Support, Prop | 01 |
|
- | ||||
| 11 | 7101P280-60 | Screw W/washer (blk) | 01 |
|
- | ||||
| 12 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 12 | 3418A087-34 | Hinge, Main Top (rt) | 01 |
|
- | ||||
| 12 | 3418A088-34 | Hinge, Main Top (lt) | 01 |
|
- | ||||
| 13 | 3801F305-80 | Bracket, Main Top | 01 |
|
- | ||||
| 14 | 5175D049-60 | Harness, Panel To Top | 01 |
|
- | ||||
| 14 | 7744P053-60 | Ring, Trim (6``) | 01 |
|
- | ||||
| 14 | 19950051A | Ring, Trim (8``) (Replaces: 7744P054-60) | 01 |
|
$ 14.92 |
