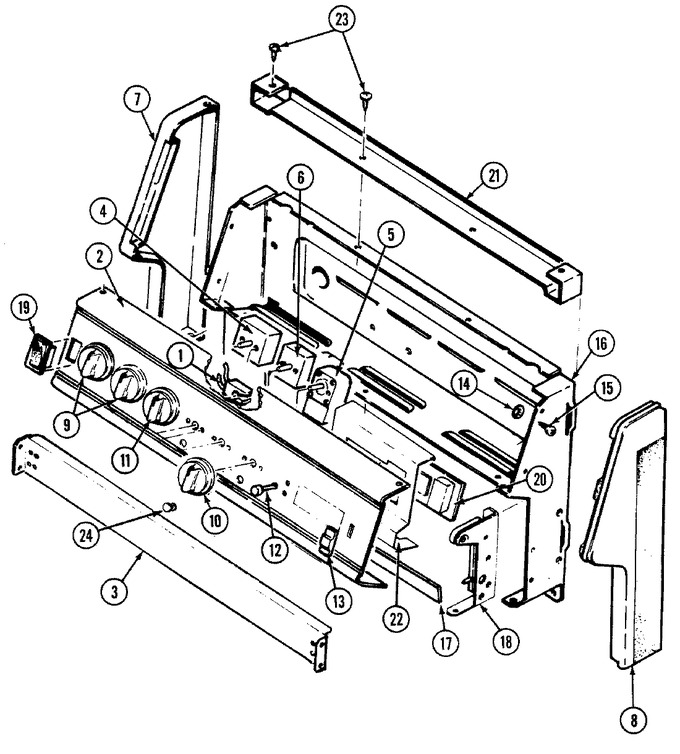

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 18 |
|
$ 106.11 | ||||
| 2 | 4876S072-59 | Panel, Control | 01 |
|
- | ||||
| 2 | WPY706189 | Screw (Replaces: 7101P332-60) | 18 |
|
Immediately | $ 6.47 | |||
| 3 | 3802F088-51 | Brace, Control Panel | 18 |
|
- | ||||
| 4 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 18 |
|
Immediately | $ 35.10 | |||
| 4 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 18 |
|
Immediately | $ 57.78 | |||
| 5 | 7404P081-60 | Thermostat | 18 |
|
- | ||||
| 6 | WP7403P255-60 | Switch, Selector (Replaces: 7403P255-60) | 18 |
|
$ 131.41 | ||||
| 6 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 18 |
|
Immediately | $ 6.26 | |||
| 7 | 7726P059-60 | End Cap (lt-blk) | 18 |
|
- | ||||
| 8 | 7726P060-60 | End Cap (rt-blk) | 18 |
|
- | ||||
| 9 | 7731P082-60 | Knob, Therm/burner (blk) | 18 |
|
- | ||||
| 10 | 7731P082-60 | Knob, Therm/burner (blk) | 18 |
|
- | ||||
| 11 | 7731P082-60 | Knob, Therm/burner (blk) | 18 |
|
- | ||||
| 12 | 7711P468-60 | Button, Set (blk) | 18 |
|
- | ||||
| 13 | 7711P469-60 | Button, Slide (blk) | 18 |
|
- | ||||
| 14 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 18 |
|
$ 7.68 | ||||
| 15 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 18 |
|
Immediately | $ 12.62 | |||
| 16 | 4001F091-51 | Housing, Control Panel | 18 |
|
- | ||||
| 17 | 3604F201-80 | Shield, Sight | 18 |
|
- | ||||
| 18 | 3418A087-34 | Hinge, Main Top (rt) | 18 |
|
- | ||||
| 18 | 3418A088-34 | Hinge, Main Top (lt) | 18 |
|
- | ||||
| 19 | 7403P067-60 | Switch, Rocker (blk) | 18 |
|
$ 91.35 | ||||
| 20 | 7101P293-60 | Screw | 18 |
|
- | ||||
| 20 | 7602P104-60 | Clock | 18 |
|
- | ||||
| 21 | 4001F064-51 | Extension, Control Panel | 18 |
|
- | ||||
| 22 | 3801F266-45 | Bracket Clock Support | 18 |
|
- | ||||
| 23 | WPY706189 | Screw (Replaces: 7101P332-60) | 18 |
|
Immediately | $ 6.47 | |||
| 24 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 18 |
|
$ 6.73 | ||||
| 24 | 5125A338-60 | Wires, Loose | 18 |
|
- | ||||
| 24 | 5170D145-60 | Harness, Control Panel | 18 |
|
- | ||||
| NI | 8113P002-60 | Manual, Use & Care | 18 |
|
- | ||||
| NI | 8112P105-60 | Manual, Use & Care-insert | 18 |
|
- |
