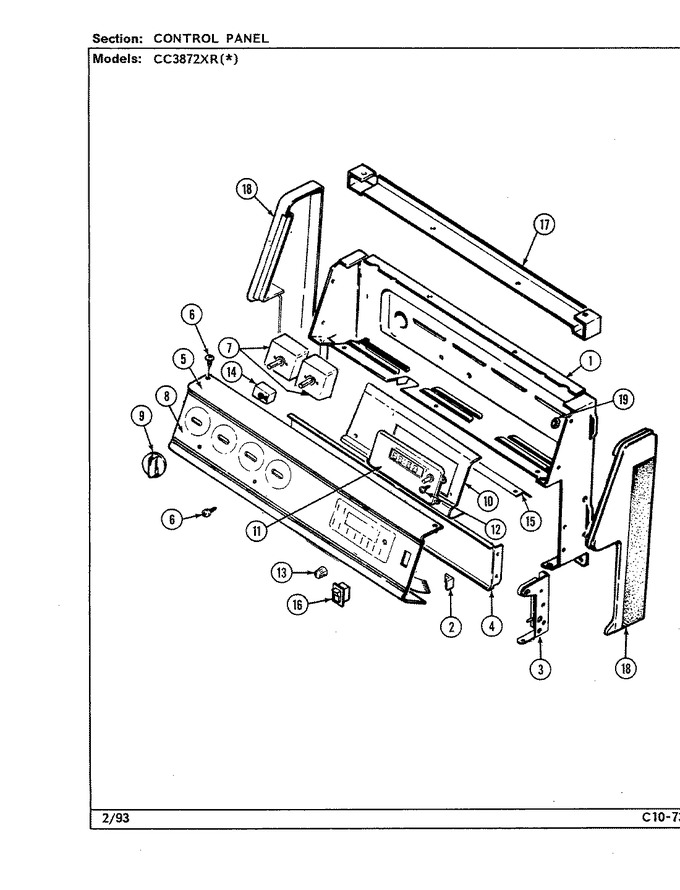

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4001F094-51		Housing, Control Panel	01	Appelez-nous	-
2	8010P083-60		Spacer	01	Appelez-nous	-
3	3418A088-34		Hinge, Main Top (lt)	01	Appelez-nous	-
3	3418A087-34		Hinge, Main Top (rt)	01	Appelez-nous	-
3	W11233072		Screw, Housing   (Replaces: 7118P015-60)	01		Immediately	$ 12.62
4	3802F088-51		Brace, Control Panel	01	Appelez-nous	-
5	7703P513-60		Panel, Control	01	Appelez-nous	-
6	WPY706189		Screw   (Replaces: 7118P019-60)	01		Immediately	$ 6.47
7	WP7403P238-60		Switch, Infinite (sml Element)   (Replaces: 7403P238-60)	01		Immediately	$ 57.78
7	WP7101P309-60		Screw   (Replaces: 7101P309-60)	01		Immediately	$ 6.26
7	WP7403P239-60		Switch, Infinite (lrg Element)   (Replaces: 7403P239-60)	01		Immediately	$ 35.10
8	7703P521-60		Trim, Switch Membrane	01	Appelez-nous	-
9	7731P082-60		Knob, Therm/burner (blk)	01	Appelez-nous	-
10	3801F310-45		Bracket, Clock	01	Appelez-nous	-
11	7601P205-60		Clock	01	Appelez-nous	-
12	WP59002061		Screw, Switch   (Replaces: 7101P148-60)	01			$ 6.98
13	WP7711P492-60		Knob, Clock (blk)   (Replaces: 7711P431-60)	01			$ 12.13
14	7407P082-60		Lamp	01	Appelez-nous	-
15	3604F201-80		Shield, Sight	01	Appelez-nous	-
16	7403P067-60		Switch, Rocker (blk)	01			$ 91.35
17	4001F064-51		Extension, Control Panel	01	Appelez-nous	-
18	7726P059-60		End Cap (lt-blk)	01	Appelez-nous	-
18	7726P060-60		End Cap (rt-blk)	01	Appelez-nous	-
19	5170P162-60		Harness, Sensor & Lock	01	Appelez-nous	-
19	5125A360-60		Wires, Loose	01	Appelez-nous	-
19	5170D122-60		Harness Bkgd	01	Appelez-nous	-
19	WP3195558		Nut, Speed   (Replaces: 7103P129-60)	01			$ 7.68
NI	8113P032-60		Manual, Use & Care	01	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
