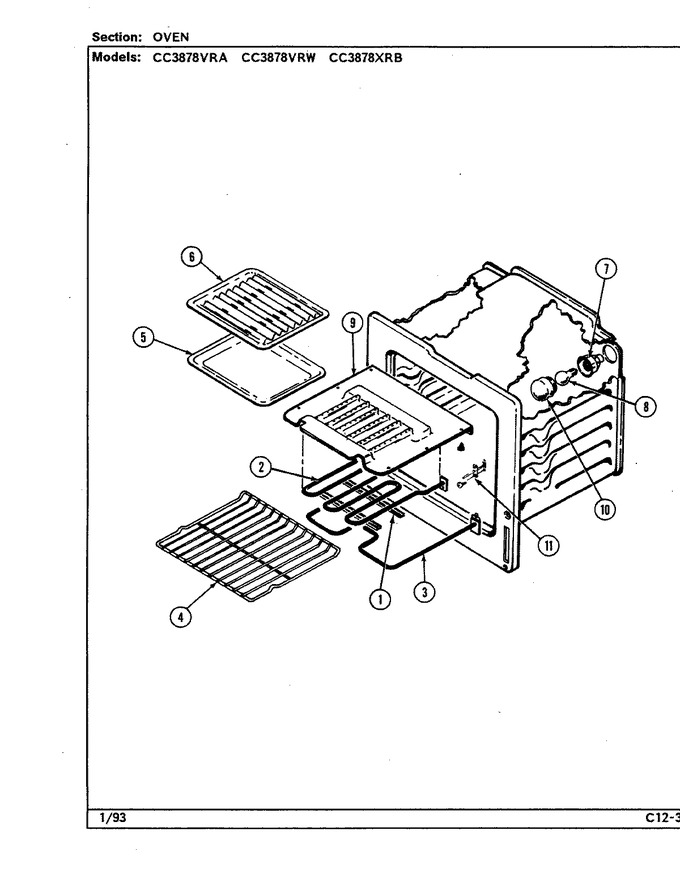

01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven
05 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 1 | 3807F387-45 | Support, Broil Element | 01 |
|
- | ||||
| 1 | W11772394 | Screw (Replaces: 7101P300-60) | 01 |
|
Immediately | $ 10.94 | |||
| 2 | WPY04000059 | Element, Broil (Replaces: 7406P065-60) | 01 |
|
$ 159.00 | ||||
| 3 | UB870 | Element, Bake (Replaces: 7406P064-60) | 01 |
|
Immediately | $ 44.96 | |||
| 4 | WPW10282492 | Rack (Replaces: 7801P040-60) | 01 |
|
Immediately | $ 65.15 | |||
| 5 | Y3401F02019 | Pan, Broil | 01 |
|
- | ||||
| 6 | Y3413F01619 | Insert, Broil Pan | 01 |
|
- | ||||
| 7 | WP7407P182-60 | Receptacle, Bulb (Replaces: 7407P088-60) | 01 |
|
Immediately | $ 66.10 | |||
| 8 | 40A15 | Bulb, Oven (Replaces: 7407P095-60) | 01 |
|
Immediately | $ 1.98 | |||
| 9 | 3601F202-45 | Baffle. Broil | 01 |
|
- | ||||
| 10 | WP9781049 | Cover, Bulb (Replaces: 7724P047-60) | 01 |
|
Immediately | $ 71.93 | |||
| 11 | 12001655 | Probe, Oven Sensor (Replaces: 7430P009-60) | 01 |
|
Immediately | $ 41.01 |
