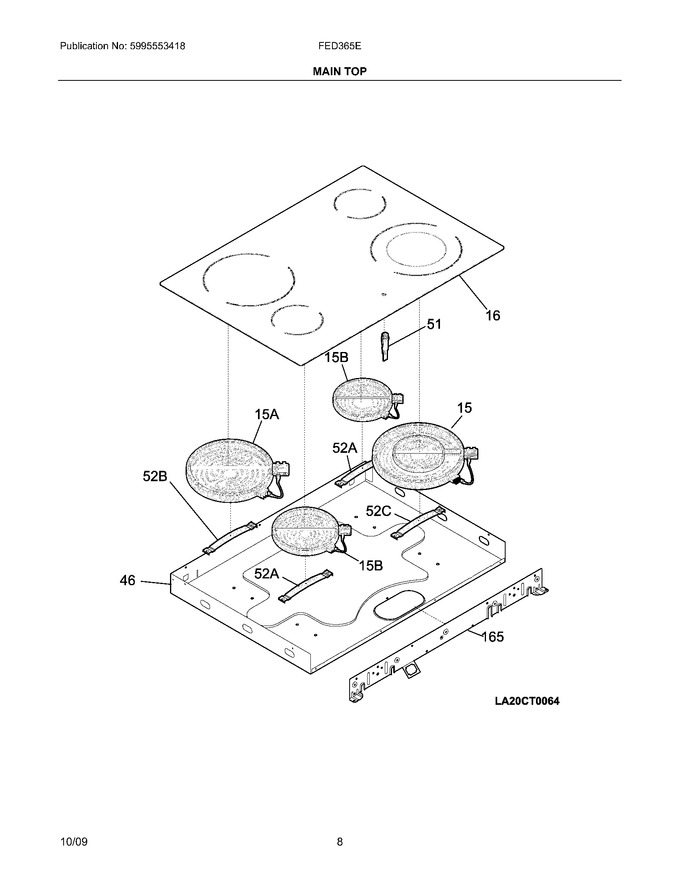

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Backguard
05 - Body
07 - Main Top
09 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 16 | 318223612 | Main Top,glass Assy. ,white |
|
$ 600.02 | |||||
| 46 | 318225429 | Box,burner |
|
$ 84.21 | |||||
| 165 | 318227503 | Plate,mounting |
|
$ 247.59 | |||||
| 52A | 318122006 | Spring,element Mtg ,small |
|
$ 66.25 | |||||
| 52B | 318122007 | Spring,element Mtg ,large |
|
$ 53.45 | |||||
| 52C | 318122010 | Spring,element Mtg ,3000w |
|
$ 62.51 | |||||
| F15 | 316555800 | Element,dual ,9``/6`` ,surface ,1300w/1200w,(2) ,radiant (Replaces: 316418401) |
|
Immediately | $ 138.90 | ||||
| F15A | 318198834 | Element,surface ,8`` /large ,2200 W |
|
$ 205.36 | |||||
| F15B | 318178110 | Element,surface ,6`` ,1200w ,(2) ,radiant (Replaces: 318198830) |
|
Immediately | $ 122.86 | ||||
| F51 | 318044828 | Light,indicator ,125v |
|
$ 36.12 | |||||
| FNI | 318228960 | Harness,wiring ,cooktop |
|
- | |||||
| FNI | 318231843 | Harness,wiring ,pilot Light |
|
- | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5304453707 | Screw, 8-32 X 3/8 (Replaces: 5303311333) |
|
Immediately | $ 15.92 |
