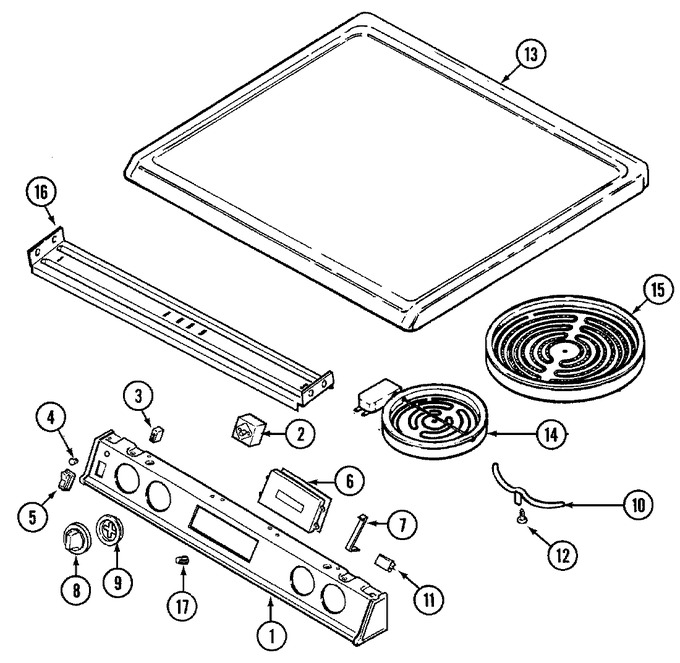

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74003911 | Panel, Control (wht) | 19 |
|
- | ||||
| 2 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 19 |
|
Immediately | $ 35.10 | |||
| 2 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 19 |
|
Immediately | $ 57.78 | |||
| 2 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 19 |
|
Immediately | $ 6.26 | |||
| 3 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 19 |
|
$ 106.11 | ||||
| 4 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 19 |
|
$ 6.73 | ||||
| 5 | 7403P200-60 | Switch, Rocker (wht) | 19 |
|
- | ||||
| 6 | 74002272 | Clock (wht) | 20 |
|
- | ||||
| 6 | 7601P279-60 | Clock (wht) | 19 |
|
- | ||||
| 7 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 19 |
|
$ 6.98 | ||||
| 7 | 3801F349-51 | Bracket, Clock | 19 |
|
- | ||||
| 8 | 7731P081-60 | Knob, Switch (wht) | 19 |
|
- | ||||
| 9 | 7740P023-60 | Bezel, Knob (wht) | 19 |
|
- | ||||
| 10 | 8004P015-60 | Support, Element | 19 |
|
- | ||||
| 11 | 7112P087-60 | Clip, Top Locking | 19 |
|
- | ||||
| 12 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 19 |
|
Immediately | $ 12.62 | |||
| 13 | CERAMABRYTE | Cleaner, Elco (Replaces: 8308P002-60) | 19 |
|
Immediately | $ 9.95 | |||
| 13 | WA906B | Scraper, Razor (Replaces: 8312P001-60) | 19 |
|
Immediately | $ 4.86 | |||
| 13 | 74002235 | Top Assy. (wht Top/wht Glass) | 19 |
|
- | ||||
| 14 | W10823704 | Element W/limiter (6``) (Replaces: 74001011) | 19 |
|
Immediately | $ 309.01 | |||
| 14 | Y04000064 | Limiter (6`` Element) | 19 |
|
- | ||||
| 15 | Y04000063 | Limiter (8`` Element) | 19 |
|
- | ||||
| 15 | W10823707 | Element W/limiter (8``) (Replaces: 74001012) | 19 |
|
Immediately | $ 316.13 | |||
| 16 | 3807F390-45 | Support, Element | 19 |
|
- | ||||
| 17 | W10124350 | Not Required Part Or See Note | 20 |
|
- | ||||
| 17 | WP7711P492-60 | Knob, Clock (wht) (Replaces: 7711P493-60) | 19 |
|
$ 12.13 | ||||
| NI | 74001495 | Harness, Wire | 19 |
|
- | ||||
| NI | 74001324 | Manual, Use & Care (french) | 19 |
|
- | ||||
| NI | 16007454 | Manual, Use & Care | 20 |
|
- | ||||
| NI | 5175D075-60 | Harness, Cooktop To Switch | 19 |
|
- | ||||
| NI | 8113P068-60 | Manual, Use & Care | 19 |
|
- | ||||
| NI | 5170P228-60 | Harness, Sensor & Lock | 19 |
|
- | ||||
| NI | 16002080 | Guide, Quick Ref - Crosley | 19 |
|
- | ||||
| NI | 74001476 | Harness, Control Panel | 19 |
|
- | ||||
| NI | 74001575 | Harness, Control/relay | 19 |
|
- |
