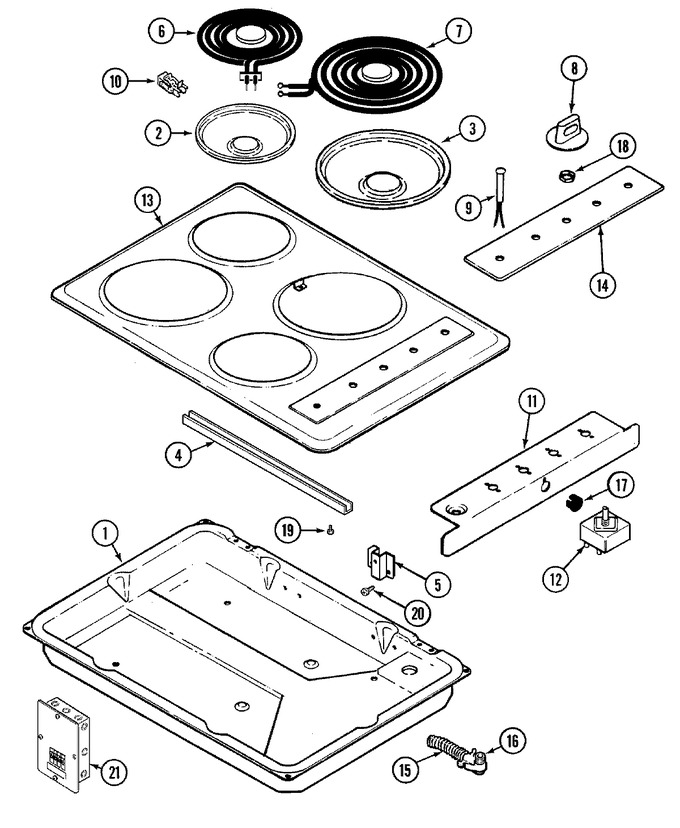

SELECT A DIAGRAM

01 - Top Assembly


02 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4011F143-80		Bottom, Burner Box	10	Appelez-nous	-
2	WPW10196406		Bowl, Drip (6``-chr)   (Replaces: 74001212)	10		Immediately	$ 12.05
3	WPW10196405		Bowl, Drip (8``-chr)   (Replaces: 74001213)	10		Immediately	$ 15.56
4	3802F070-51		Brace, Top	10	Appelez-nous	-
5	3801F183-45		Bracket, Main Top Support	10	Appelez-nous	-
6	WP660532		Element (6``)   (Replaces: 7406P037-60)	10		Immediately	$ 36.90
7	WP3191454		Element (8``)   (Replaces: 7406P039-60)	10			$ 163.63
8	7737P029-60		Knob, Switch	10			$ 18.07
9	74001782		Light, Indicator	10	Appelez-nous	-
10	12001676		Kit, Receptacle   (Replaces: 1430306K)	10		Immediately	$ 28.45
11	3604F133-80		Shield Switch Wiring	10	Appelez-nous	-
12	W10900107		Switch, Infinite   (Replaces: 7403P027-60)	10		Immediately	$ 51.87
13	74001709		Top, Main (wht)	10	Appelez-nous	-
14	74002194		Trim, Control Panel (wht)	10	Appelez-nous	-
15	3414F035-44		Tubing, Conduit (flexible)	10	Appelez-nous	-
15	3801F072-45		Bracket, Conduit	10	Appelez-nous	-
15	74001216		Wires, Conduit Tubing	10	Appelez-nous	-
16	8008P017-60		Grommet	10	Appelez-nous	-
16	7417P005-60		Connector, Conduit	10	Appelez-nous	-
17	W11577436		Grommet   (Replaces: 8008P010-60)	10	Appelez-nous	-
18	7103P021-60		Nut, Switch	10	Appelez-nous	-
19	WP4159193		Screw   (Replaces: 7118P004-60)	10			$ 4.29
20	WP7101P126-60		Screw   (Replaces: 7101P059-60)	10		Immediately	$ 6.85
21	8028P005-60		Box, Breaker	10	Appelez-nous	-
NI	16002080		Guide, Quick Ref - Crosley	10	Appelez-nous	-
NI	74001784		Manual, Use & Care (eng/fch)	10	Appelez-nous	-
NI	W11684512		Screw (10abx1.0-zn)   (Replaces: 7101P060-60)	10			$ 12.69
NI	74001783		Wires (switch/element)	10	Appelez-nous	-
