SELECT A DIAGRAM

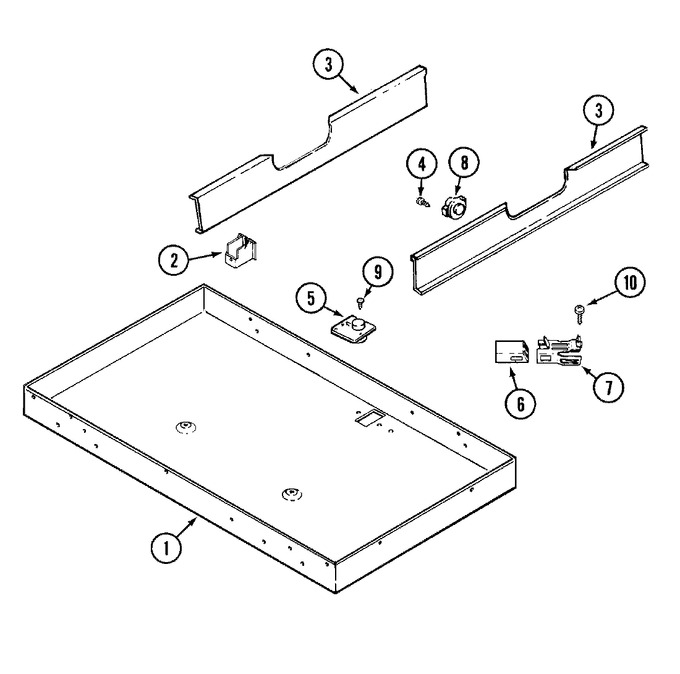

01 - Burner Box Assembly
02 - Main Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 04100482 | Burner Box | 11 |
|
- | ||||
| 2 | 04100399 | Top Support Bracket | 11 |
|
- | ||||
| 3 | 04100485 | Partition | 11 |
|
- | ||||
| 4 | Y707121 | Screw | 11 |
|
- | ||||
| 5 | 04100526 | Wire Cable Assy | 11 |
|
- | ||||
| 6 | 12001676 | Receptacle (Replaces: Y04100394) | 11 |
|
Immediately | $ 28.45 | |||
| 7 | Y712355 | Bracket, Receptacle | 11 |
|
- | ||||
| 8 | 04100497 | Limiter, 3/4 | 11 |
|
- | ||||
| 9 | WP71001171 | Screw, Ground (Replaces: 71001171) | 11 |
|
$ 6.26 | ||||
| 10 | WP74004005 | Screw (Replaces: 71001580) | 11 |
|
$ 6.95 | ||||
| NI | 04100525 | Harness, Control | 11 |
|
- | ||||
| NI | 704165 | Box, Breaker | 11 |
|
- | ||||
| NI | 702008 | Breaker (30 Amp) | 11 |
|
- |
