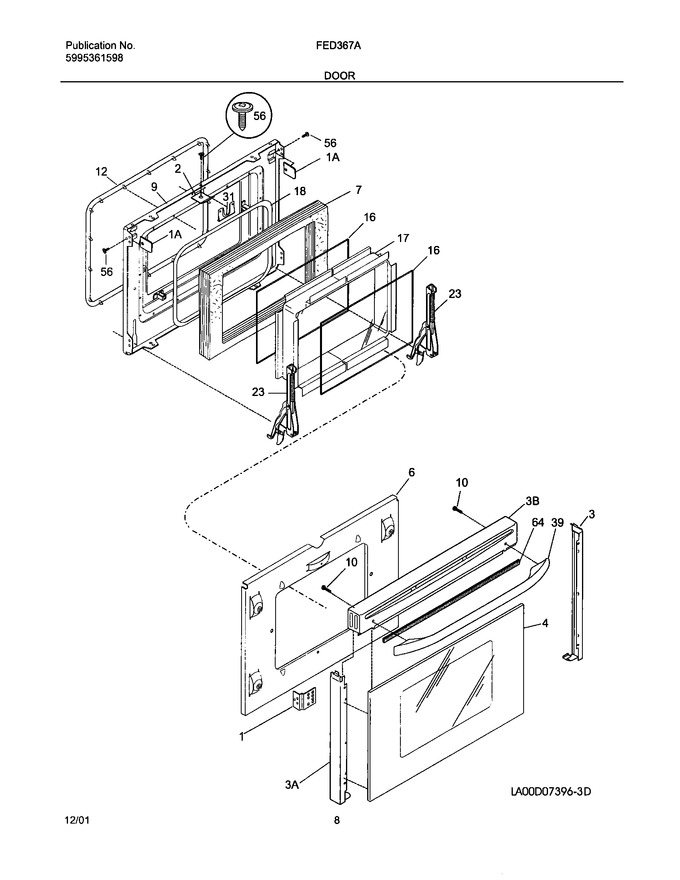

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318043100		Bracket-trim, Handle, (2)				$ 52.87
2	318180312		Bracket,upper Trim Mtg		Appelez-nous	-
3	318187812		Trim,door ,bisque ,rh Side		Appelez-nous	-
4	318187716		Panel,door Front Assy ,glass ,bisque ,		Appelez-nous	-
6	318056802		Shield-insulation		Appelez-nous	-
7	318133754		Insulation,oven Door		Appelez-nous	-
9	318157011		Liner,door		Appelez-nous	-
10	5304414648		Screw,10-24 X 1/4   (Replaces: 5303308458)				$ 14.18
12	318053103		Gasket,oven Door Seal			Immediately	$ 150.03
16	318041603		Panel,glass ,inner Oven Door				$ 95.24
17	318042102		Spacer-glass		Appelez-nous	-
18	318053001		Seal-window		Appelez-nous	-
23	318024700		Hinge,oven Door		Appelez-nous	-
31	5303310536		Latch,oven Door				$ 30.66
39	316108803		Handle,oven Door ,bisque		Appelez-nous	-
56	5303300265		Screw,8-18 X 0.500 ,chrome				$ 15.17
64	5304417120		Tape,0.762 M ,neoprene		Appelez-nous	-
1A	318180310		Bracket,trim Mtg				$ 65.31
3A	318187813		Trim,door ,bisque ,lh Side		Appelez-nous	-
3B	318176648		Trim,door ,bisque ,top		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303307980		Screw,8-32 X 0.437			Immediately	$ 14.18

    View Diagram in Separate Window       Print Part List
