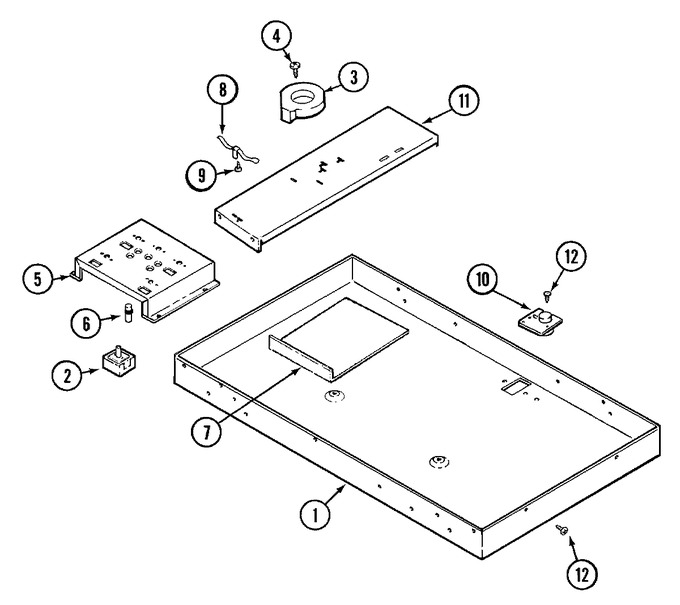

01 - Body
02 - Top Assembly
03 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71002465 | Box, Burner | 11 |
|
- | ||||
| 1 | 74006971 | Box, Burner | 14 |
|
- | ||||
| 2 | W11088181 | Switch, Infinite (Replaces: 71001166) | 11 |
|
Immediately | $ 107.44 | |||
| 2 | 12002125 | Switch, Dual Element(series M) (Replaces: 74007715) | 12 |
|
Immediately | $ 79.23 | |||
| 2 | 12002125 | Switch, Dual (Replaces: 71001612) | 11 |
|
Immediately | $ 79.23 | |||
| 3 | Y04100416 | Light Box | 11 |
|
$ 54.72 | ||||
| 4 | WP7101P309-60 | Screw (Replaces: Y04100501) | 11 |
|
Immediately | $ 6.26 | |||
| 5 | 74006919 | Plate, Switch Mtg. | 14 |
|
- | ||||
| 5 | 74006921 | Support, Switch Plate | 14 |
|
- | ||||
| 5 | 71001616 | Support, Switch Plate | 11 |
|
- | ||||
| 5 | Y04100417 | Plate, Switch Mtg. | 11 |
|
- | ||||
| 6 | Y706125 | Light, Indicator | 11 |
|
- | ||||
| 6 | Y706091 | Wire, Pilot Light | 11 |
|
- | ||||
| 6 | 74006974 | Plate, Signal Light (30``) | 14 |
|
- | ||||
| 7 | 71001613 | Shield, Inf | 11 |
|
- | ||||
| 8 | 74007134 | Spring, Element Support (Replaces: Y04100418) | 11 |
|
$ 10.51 | ||||
| 9 | WP74004005 | Screw (Replaces: Y708359) | 11 |
|
$ 6.95 | ||||
| 10 | 71001614 | Wire Cable Assy. | 11 |
|
- | ||||
| 10 | WP71001171 | Screw, Ground (Replaces: 71001171) | 11 |
|
$ 6.26 | ||||
| 11 | 74006920 | Crossbar, Elem Support | 14 |
|
- | ||||
| 11 | Y04100419 | Crossbar, Elem Support | 11 |
|
- | ||||
| 12 | WP90767 | Screw (Replaces: Y700502) | 14 |
|
Immediately | $ 7.04 | |||
| 12 | WP90767 | Screw (Replaces: Y700502) | 11 |
|
Immediately | $ 7.04 |
