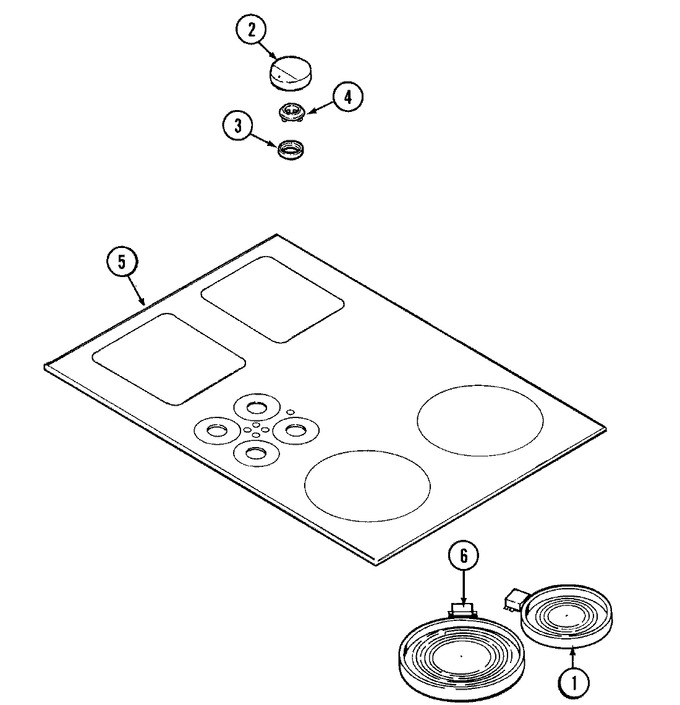

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Top Assembly
03 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10823704 | Element, Radiant (1200w) (Replaces: 71001423) | 10 |
|
Immediately | $ 309.01 | |||
| 2 | Y04100366 | Knob, Infinite (blk) | 10 |
|
$ 16.21 | ||||
| 3 | 71001237 | Seal, Ring----na | 10 |
|
- | ||||
| 4 | WP8008P071-60 | Grommet, Spill (blk) (Replaces: 71002370) | 10 |
|
$ 8.02 | ||||
| 5 | CERAMABRYTE | Cleaner, Elco (Replaces: 8308P002-60) | 10 |
|
Immediately | $ 9.95 | |||
| 5 | 71003286 | Tape, Foam (30``) | 10 |
|
$ 83.10 | ||||
| 5 | 71003283 | Top, Glass (blk)----na | 10 |
|
- | ||||
| 6 | W10823707 | Element, Radiant (2200w) (Replaces: 71001424) | 10 |
|
Immediately | $ 316.13 | |||
| NI | 71003285 | Manual, Use & Care | 10 |
|
- | ||||
| NI | 16010241 | Manual, Service | 10 |
|
- |
