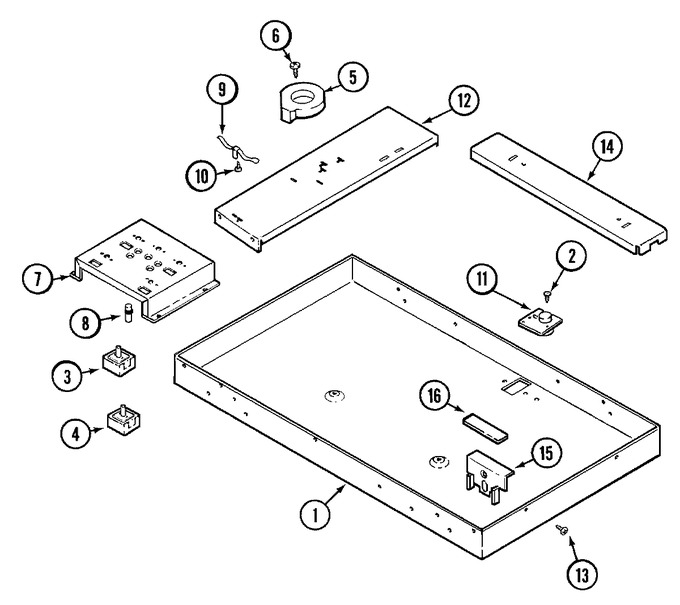

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Top Assembly
03 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71001027 | Box, Burner | 11 |
|
- | ||||
| 2 | WP71001171 | Screw, Ground (Replaces: 71001171) | 11 |
|
$ 6.26 | ||||
| 3 | 12002125 | Switch, Dual Element(series M) (Replaces: 74007715) | 12 |
|
Immediately | $ 79.23 | |||
| 3 | 12002125 | Switch, Dual (Replaces: 71001612) | 11 |
|
Immediately | $ 79.23 | |||
| 4 | W11088181 | Switch, Infinite (Replaces: 71001166) | 11 |
|
Immediately | $ 107.44 | |||
| 5 | Y04100416 | Light Box | 11 |
|
$ 54.72 | ||||
| 6 | WP7101P309-60 | Screw (Replaces: Y04100501) | 11 |
|
Immediately | $ 6.26 | |||
| 7 | Y04100417 | Plate, Switch Mtg. | 11 |
|
- | ||||
| 8 | Y706125 | Light, Indicator | 11 |
|
- | ||||
| 8 | Y706091 | Wire, Pilot Light | 11 |
|
- | ||||
| 9 | 74007134 | Spring, Element Support (Replaces: Y04100418) | 11 |
|
$ 10.51 | ||||
| 10 | WP74004005 | Screw (Replaces: Y708359) | 11 |
|
$ 6.95 | ||||
| 11 | 71001627 | Wire Cable Assy. | 11 |
|
- | ||||
| 12 | 71001613 | Shield, Inf | 11 |
|
- | ||||
| 12 | Y04100419 | Crossbar, Elem Support | 11 |
|
- | ||||
| 12 | 71001616 | Support, Switch Plate | 11 |
|
- | ||||
| 13 | WP90767 | Screw (Replaces: Y700502) | 11 |
|
Immediately | $ 7.04 | |||
| 14 | 04100443 | Crossbar, Elem Support | 11 |
|
- | ||||
| 15 | 71001108 | Support, Glass | 11 |
|
- | ||||
| 16 | 71001239 | Pad, Glass Support | 11 |
|
- | ||||
| NI | 71001615 | Wire (blue) | 11 |
|
- | ||||
| NI | Y04100428 | Wire, White | 11 |
|
- | ||||
| NI | 71001628 | Wire, Blue (16``) | 11 |
|
- | ||||
| NI | Y04100424 | Wire, Yellow (15``) | 11 |
|
- | ||||
| NI | Y04100425 | Wire, Violet (18``) | 11 |
|
- | ||||
| NI | Y04100427 | Wire, Orange (14``) | 11 |
|
- | ||||
| NI | 04100447 | Wire, Gray | 11 |
|
- |
