SELECT A DIAGRAM
01 - Body
02 - Top Assembly
New Model Search:

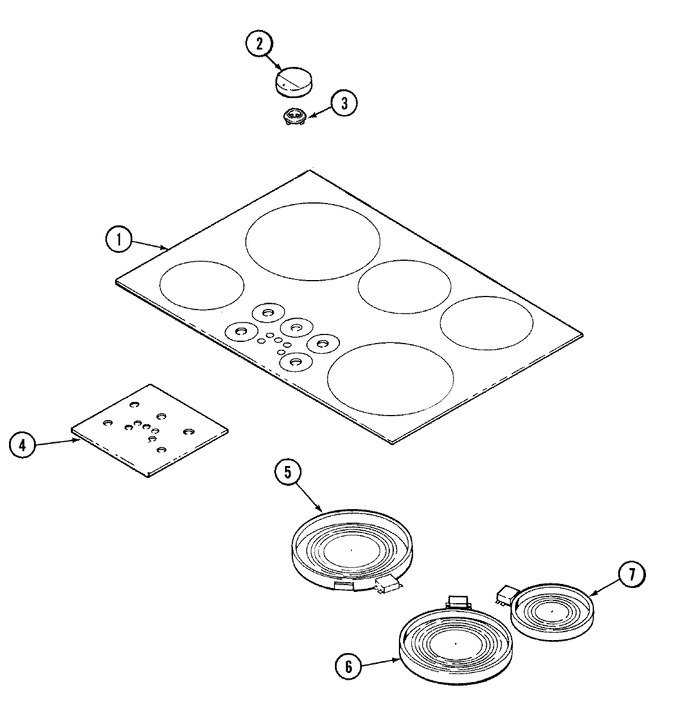

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71002557 | Glass, Frame Assy. (blk) | 13 |
|
$ 490.12 | ||||
| 1 | 71002468 | Glass Assy. (blk) | 11 |
|
- | ||||
| 1 | 71002464 | Clip, Glass Assy. | 11 |
|
- | ||||
| 2 | Y04100366 | Knob, Infinite (blk) | 11 |
|
$ 16.21 | ||||
| 3 | WPY706102 | Grommet, Infinite Switch (Replaces: Y706102) | 11 |
|
Immediately | $ 6.78 | |||
| 4 | 71002466 | Decal, Backlight | 11 |
|
- | ||||
| 5 | W10823694 | Element, Dual (2400/1000w) (Replaces: 71001618) | 11 |
|
Immediately | $ 320.29 | |||
| 6 | Y04100448 | Element, Halogen 2200w | 11 |
|
- | ||||
| 7 | W10823693 | Element, Radiant (1700w) (Replaces: 71001624) | 11 |
|
Immediately | $ 205.87 | |||
| 7 | W10823704 | Element, Radiant (1200w) (Replaces: 71001423) | 11 |
|
Immediately | $ 309.01 | |||
| NI | 71002424 | Manual, Use & Care | 11 |
|
- | ||||
| NI | 16010241 | Manual, Service | 10 |
|
- |
