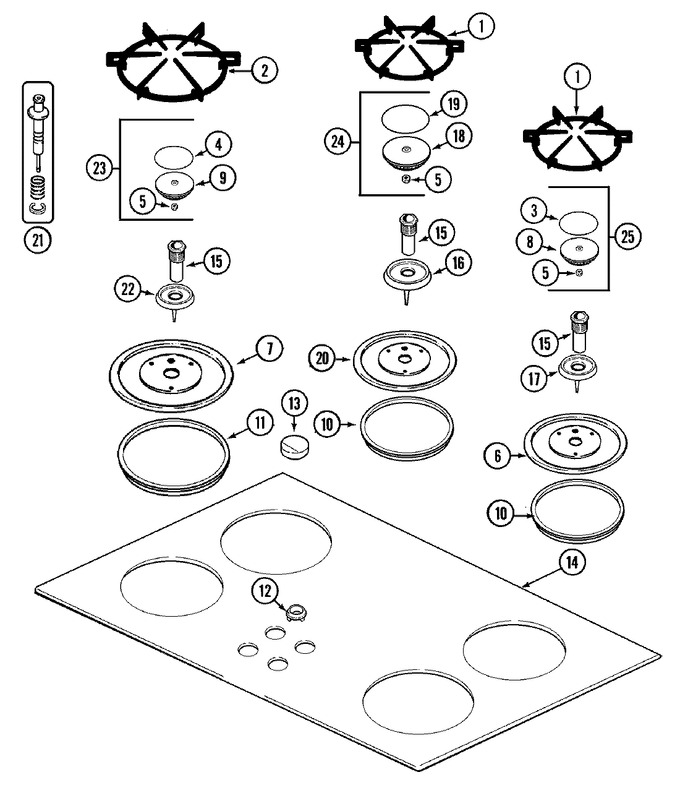

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	71001681		Grate (sm/blk)	11	Appelez-nous	-
2	71001682		Grate (lg/blk)	11	Appelez-nous	-
3	71001683		Cap, Burner (rr-blk)	11	Appelez-nous	-
4	71001074		Cap (lg-blk)	11	Appelez-nous	-
5	W10244602		Nut, M5   (Replaces: 71001092)	11			$ 11.90
6	71001684		Pan, Burner (sm/blk)	11	Appelez-nous	-
7	71001688		Pan, Burner (lg/blk)	11	Appelez-nous	-
8	71001664		Head, Burner (sm)	11	Appelez-nous	-
9	71001079		Head, Burner (lg)	11	Appelez-nous	-
10	WP71001669		Seal, Pan (sm & Simmer)   (Replaces: 71001669)	11			$ 91.07
11	71001670		Seal, Pan (lg)	11			$ 49.99
12	71001237		Seal, Ring----na	11	Appelez-nous	-
12	71001690		Grommet, Spill (blk)	11	Appelez-nous	-
13	705800		Knob (blk)	11	Appelez-nous	-
14	71001692		Glass, Cooktop (blk)	11	Appelez-nous	-
15	71001082		Venturi	11	Appelez-nous	-
16	71001076		O-ring, Base (smr)	11	Appelez-nous	-
16	71001080		Base, Burner (sm)	11	Appelez-nous	-
17	71001672		O-ring, Base (sm)	11	Appelez-nous	-
17	71001696		Base, Burner (sm)	11	Appelez-nous	-
18	71001078		Head, Burner (lf)	11	Appelez-nous	-
19	71001072		Cap, Burner (smr-blk)	11	Appelez-nous	-
20	71001686		Pan, Burner (smr/blk)	11	Appelez-nous	-
21	71001695		Clip, Igniter	11	Appelez-nous	-
21	71001694		Igniter	11	Appelez-nous	-
22	71001077		O-ring, Base (lg)	11	Appelez-nous	-
22	71001081		Base, Burner (lg)	11	Appelez-nous	-
23	71001069		Head, Burner Assy. (lg/blk)	11	Appelez-nous	-
24	71001066		Head, Burner Assy. (smr/blk)	11	Appelez-nous	-
25	71001689		Head, Burner (sm/blk)	11	Appelez-nous	-
NI	16000326		Guide, Quick Ref - Jenn-air	11	Appelez-nous	-
NI	71001693		Orifice (lp) (4 Orifice/jet)	11	Appelez-nous	-
NI	71001729		Manual, Use & Care	11	Appelez-nous	-
