01 - Body

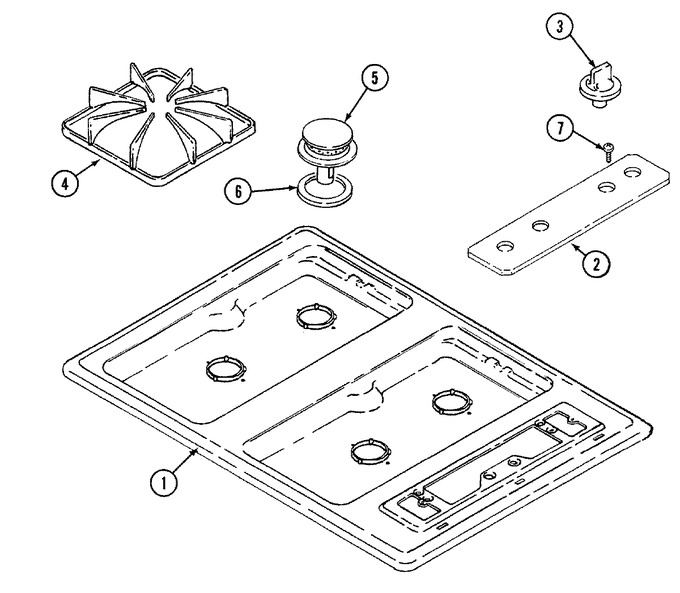

02 - Top Assembly
03 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74001888 | Top, Main (blk) | 11 |
|
- | ||||
| 2 | 74001762 | Trim, Control Panel (blk) | 11 |
|
- | ||||
| 3 | WP74001253 | Knob, Top Burner (blk) (Replaces: 74001765) | 11 |
|
$ 19.77 | ||||
| 4 | 74001769 | Grate, Burner (blk) | 11 |
|
$ 74.59 | ||||
| 5 | 74004053 | Igniter, Top Burner | 15 |
|
Immediately | $ 24.25 | |||
| 5 | WP3412D024-09 | Burner, Sealed (blk) (Replaces: 74003963) | 15 |
|
Immediately | $ 92.69 | |||
| 5 | WP3412D024-09 | Sealed Burner Assy. (blk) (Replaces: 3412D018-09) | 11 |
|
Immediately | $ 92.69 | |||
| 5 | W10124350 | Not Required Part Or See Note Igniter Not Sold Separately (must Order Sealed Burner) | 11 |
|
- | ||||
| 6 | WP3412D024-09 | Gasket, Burner (Replaces: 7201P050-60) | 11 |
|
Immediately | $ 92.69 | |||
| 7 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 11 |
|
$ 6.98 | ||||
| NI | 74001760 | Manual, Use & Care | 11 |
|
- |
