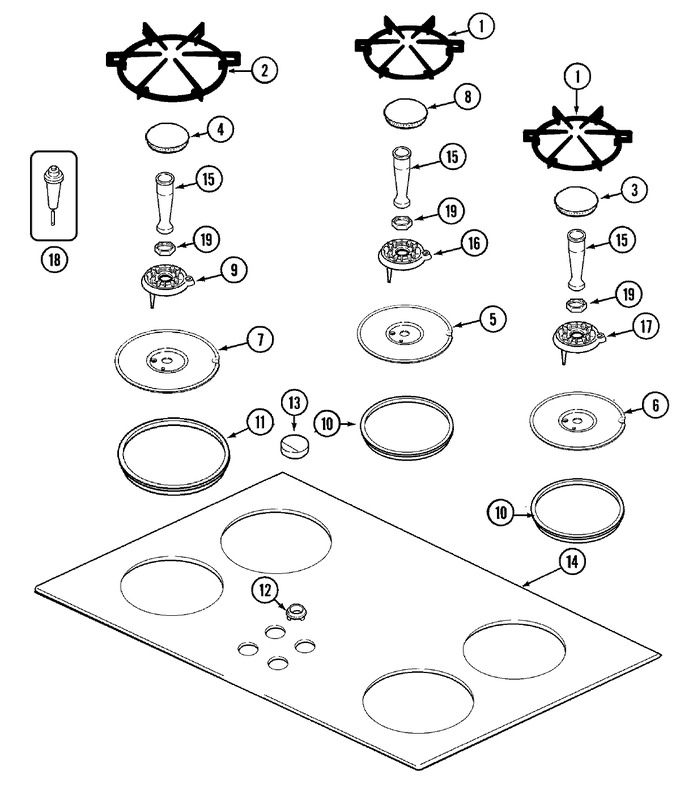

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74005342		Grate (sm/smr-blk)	10	Appelez-nous	-
2	74005343		Grate (lrg-blk)	10	Appelez-nous	-
3	74007196		Cap, Burner (med-mt Blk)	14			$ 31.27
3	74005344		Cap, Burner (med-blk)	10	Appelez-nous	-
4	74005345		Cap, Burner (lrg-blk)	10	Appelez-nous	-
4	74007203		Cap, Burner (lrg-blk)	14			$ 74.04
5	74005346		Pan, Burner (blk)	10	Appelez-nous	-
6	74005347		Pan, Burner (sm-blk)	10	Appelez-nous	-
7	74005348		Pan, Burner (lrg-blk)	10	Appelez-nous	-
8	74005349		Cap, Burner (sml-blk)	10	Appelez-nous	-
8	74007191		Cap, Burner (smr-mt Blk)	14	Appelez-nous	-
9	71002743		Base, Burner (lg)	10	Appelez-nous	-
9	74007183		Burner, Base (lrg)	14	Appelez-nous	-
10	WP71001669		Seal, Pan (sm & Simmer)   (Replaces: 71001669)	10			$ 91.07
11	71001670		Seal, Pan (lg)	10			$ 49.99
12	WP8008P071-60		Grommet, Spill (blk)   (Replaces: 71002370)	10			$ 8.02
13	WP71002372		Knob, Burner (blk)   (Replaces: 71002372)	10		Immediately	$ 18.16
14	74005350		Glass, Cooktop (slvr)	10	Appelez-nous	-
15	WP7538P003-60		Venturi   (Replaces: 71002747)	10			$ 88.55
16	WP7540P028-60		Base, Burner (smr)   (Replaces: 71002784)	10			$ 48.41
16	WP7540P028-60		Burner, Base (smr)   (Replaces: 74007181)	14			$ 48.41
17	74007182		Burner, Base (sm)	14			$ 49.55
17	71002744		Base, Burner (sm)	10	Appelez-nous	-
18	WP7432P109-60		Igniter   (Replaces: 71002724)	10			$ 47.83
19	WP7103P178-60		Nut, Mounting   (Replaces: 71002746)	10			$ 6.26
NI	71002725		Nat-lp Orifice Kit (30``)	10	Appelez-nous	-
NI	71002741		Manual, Use & Care	10	Appelez-nous	-
