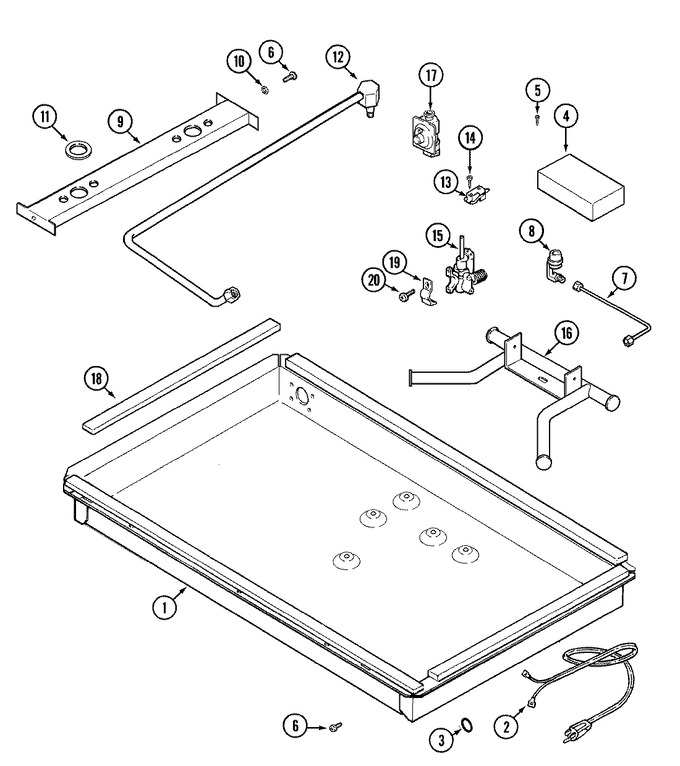

01 - Body
02 - Top Assembly
03 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71001730 | Box, Burner | 11 |
|
- | ||||
| 2 | Y705805 | Cord, Power | 11 |
|
- | ||||
| 3 | 705833 | Relief, Strain | 11 |
|
- | ||||
| 4 | Y04100284 | Module, Spark | 11 |
|
- | ||||
| 5 | 708765 | Screw | 11 |
|
- | ||||
| 6 | WP90767 | Screw (Replaces: Y700502) | 11 |
|
Immediately | $ 7.04 | |||
| 7 | 71001743 | Tube, Burner (lr) | 11 |
|
- | ||||
| 7 | 71001731 | Tube, Burner (lf) | 11 |
|
- | ||||
| 7 | 71001732 | Tube, Burner (rr) | 11 |
|
- | ||||
| 7 | 71001735 | Tube, Burner (c/lg) | 11 |
|
- | ||||
| 7 | 71001699 | Tube, Burner (rt Ft) | 11 |
|
- | ||||
| 8 | 71002863 | Orifice (9.1k) | 11 |
|
- | ||||
| 8 | 71001088 | Holder, Orifice (10.5k) | 11 |
|
- | ||||
| 8 | 71002448 | Holder, Orifice (9.1) | 11 |
|
- | ||||
| 8 | 71001086 | Holder, Orifice (12k) | 11 |
|
- | ||||
| 8 | 71001087 | Holder, Orifice (6.5k) | 11 |
|
- | ||||
| 8 | 71001089 | Orifice (12k) | 11 |
|
- | ||||
| 8 | 71001090 | Orifice (10.5k) | 11 |
|
- | ||||
| 8 | 71001091 | Orifice (6.5k) | 11 |
|
- | ||||
| 9 | 71001667 | Support, Cross | 11 |
|
- | ||||
| 10 | 715910 | Washer, Lock | 11 |
|
- | ||||
| 11 | Y04100375 | Tube, Keeper (lg) | 11 |
|
- | ||||
| 11 | 71001697 | Nut | 11 |
|
- | ||||
| 12 | 71001703 | Tube, Supply | 11 |
|
- | ||||
| 13 | 71001083 | Switch, Valve | 11 |
|
$ 95.73 | ||||
| 14 | 71001153 | Screw, Switch | 11 |
|
- | ||||
| 15 | 71001704 | Valve, Burner (rf) | 11 |
|
- | ||||
| 15 | 71001733 | Valve, Burner (ctr) | 11 |
|
- | ||||
| 15 | 71001734 | Valve, Burner (lf) | 11 |
|
- | ||||
| 15 | 705858 | Seal, Valve | 11 |
|
- | ||||
| 15 | 71001705 | Valve, Burner (lr) | 11 |
|
- | ||||
| 15 | 71001706 | Valve, Burner (rr) | 11 |
|
- | ||||
| 16 | 71001744 | Pipe, Gas Manifold Assy. | 11 |
|
- | ||||
| 17 | W11106948 | Regulator, Pressure (Replaces: Y704545) | 11 |
|
Immediately | $ 215.01 | |||
| 18 | 705829 | Tape, Seal Silicone | 11 |
|
- | ||||
| 19 | 705859 | Bracket, Valve | 11 |
|
- | ||||
| 20 | 705860 | Screw, Valve | 11 |
|
- | ||||
| NI | 71001739 | Wire, Hv (29``) | 11 |
|
- | ||||
| NI | 71001740 | Wire Wht (25``) | 11 |
|
- | ||||
| NI | 71001737 | Wire, Wht (14``) | 11 |
|
- | ||||
| NI | 71001736 | Wire, Hv (wht) | 11 |
|
- | ||||
| NI | 71001738 | Wire, Wht (lr-27``) | 11 |
|
- |
