View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Gas Controls

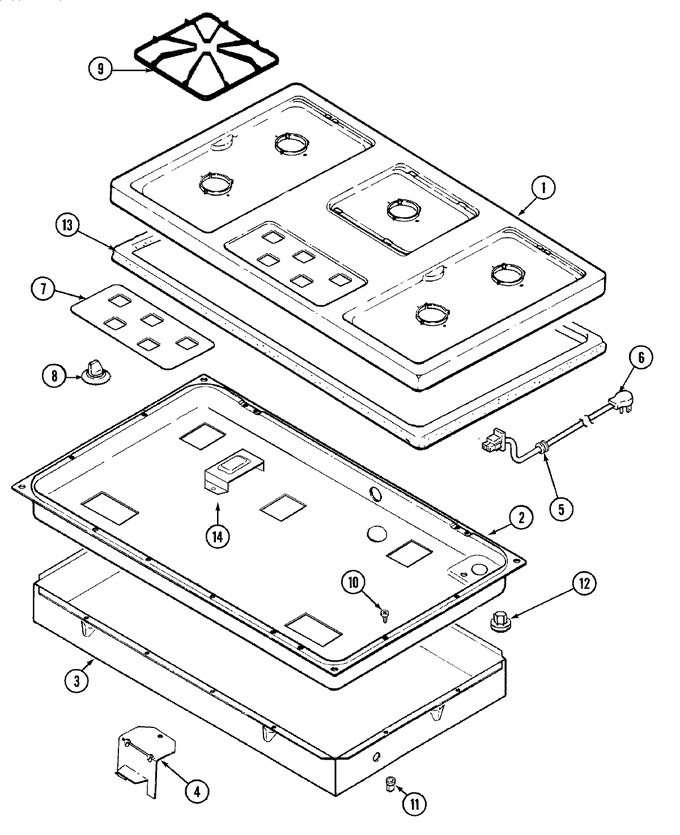

02 - Top Assembly
03 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74002187 | Top, Main (blk) | 11 |
|
- | ||||
| 2 | 74001965 | Bottom, Burner Box | 11 |
|
- | ||||
| 3 | WP4159193 | Screw, Ground (grn) (Replaces: 7101P027-60) | 11 |
|
$ 4.29 | ||||
| 3 | 74001966 | Housing, Unit | 11 |
|
- | ||||
| 4 | 74001969 | Bracket, Tie Down | 11 |
|
- | ||||
| 4 | W11684512 | Screw (10abx1.0-zn) (Replaces: 7101P060-60) | 11 |
|
$ 12.69 | ||||
| 5 | 8007P003-60 | Bushing, Snap | 11 |
|
- | ||||
| 6 | 7402P047-60 | Cord, Power | 11 |
|
- | ||||
| 7 | 74002264 | Panel, Control (blk) | 11 |
|
- | ||||
| 8 | 74002267 | Knob, Burner (blk)----cc | 11 |
|
- | ||||
| 9 | 74001769 | Grate, Burner (blk) | 11 |
|
$ 74.59 | ||||
| 10 | W11684512 | Screw (10abx1.0-zn) (Replaces: 7101P060-60) | 11 |
|
$ 12.69 | ||||
| 11 | 7103P016-60 | Nut, Snap | 11 |
|
- | ||||
| 12 | 74002078 | Plug, Button (7/8``) | 11 |
|
- | ||||
| 13 | 74002138 | Tape, Foam Seal | 11 |
|
- | ||||
| 14 | 74002076 | Cover, Spark Module | 11 |
|
- | ||||
| 14 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 11 |
|
Immediately | $ 12.62 | |||
| NI | 8008P012-60 | Grommet, Nylon | 11 |
|
- | ||||
| NI | W11684512 | Screw (10abx1.0-zn) (Replaces: 7101P060-60) | 11 |
|
$ 12.69 | ||||
| NI | 74002139 | Tape, Seal (installation) | 11 |
|
- | ||||
| NI | 74002118 | Harness, Cooktop | 11 |
|
- | ||||
| NI | 74002247 | Manual, Use & Care | 11 |
|
- | ||||
| NI | 16000326 | Guide, Quick Ref - Jenn-air | 11 |
|
- |
