SELECT A DIAGRAM

01 - Body


02 - Top Assembly


03 - Wiring Information

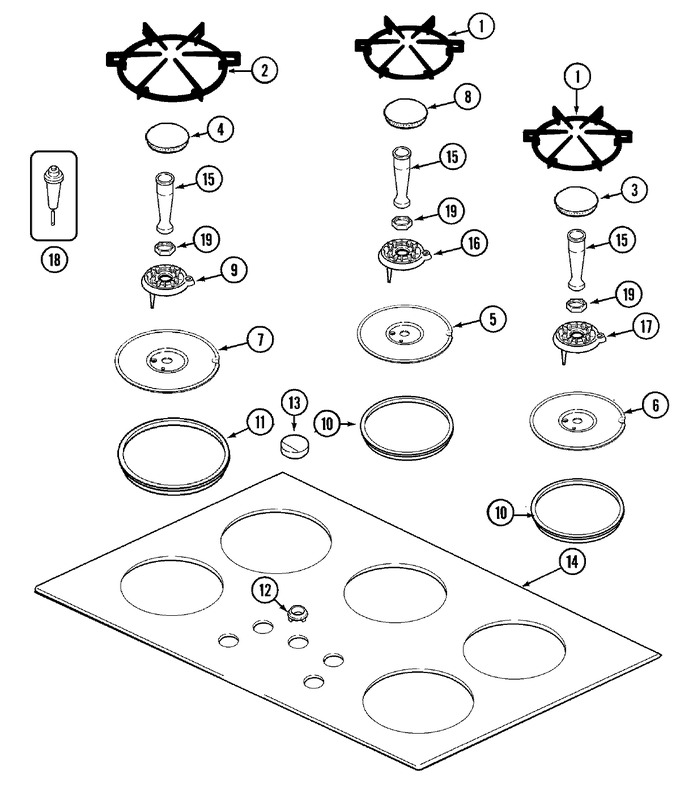

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	71001681		Grate (sm/blk)	10	Appelez-nous	-
2	71001682		Grate (lg/blk)	10	Appelez-nous	-
3	71002738		Cap, Burner (sm-blk)	10	Appelez-nous	-
3	74007193		Cap, Burner (sm-blk)	14	Appelez-nous	-
4	74007199		Cap, Burner (lg-blk)	14	Appelez-nous	-
4	71002740		Cap, Burner (lg-blk)	10	Appelez-nous	-
5	71002734		Pan, Burner (smr-blk)	10	Appelez-nous	-
5	71002999		Pan, Burner (smr-blk)	11	Appelez-nous	-
6	71002732		Pan, Burner (sm-blk)	10	Appelez-nous	-
7	71002729		Pan, Burner (lg-blk)	10	Appelez-nous	-
8	71002787		Cap, Burner (smr-blk)	11	Appelez-nous	-
8	74007187		Cap, Burner (smr-blk)	14	Appelez-nous	-
8	71002736		Cap, Burner (smr-blk)	10	Appelez-nous	-
9	71002743		Base, Burner (lg)	10	Appelez-nous	-
10	WP71001669		Seal, Pan (sm & Simmer)   (Replaces: 71001669)	10			$ 91.07
11	71001670		Seal, Pan (lg)	10			$ 49.99
12	WP8008P071-60		Grommet, Spill (blk)   (Replaces: 71002370)	10			$ 8.02
13	WP71002372		Knob, Burner (blk)   (Replaces: 71002372)	10		Immediately	$ 18.16
14	71002374		Glass, Cooktop (blk)	10	Appelez-nous	-
15	WP7538P003-60		Venturi   (Replaces: 71002747)	10			$ 88.55
16	WP7540P028-60		Burner, Base (smr)   (Replaces: 74007181)	14			$ 48.41
16	WP7540P028-60		Base, Burner (smr)   (Replaces: 71002784)	11			$ 48.41
16	71002745		Base, Burner (smr)	10	Appelez-nous	-
17	71002744		Base, Burner (sm)	10	Appelez-nous	-
17	74007182		Burner, Base (sm)	14			$ 49.55
18	WP7432P109-60		Igniter   (Replaces: 71002724)	10			$ 47.83
19	WP7103P178-60		Nut, Mounting   (Replaces: 71002746)	10			$ 6.26
NI	74003224		Nat-lp Orifice Kit (36``)	10	Appelez-nous	-
NI	71002742		Manual, Use & Care (fch)	10	Appelez-nous	-
NI	71002741		Manual, Use & Care	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
