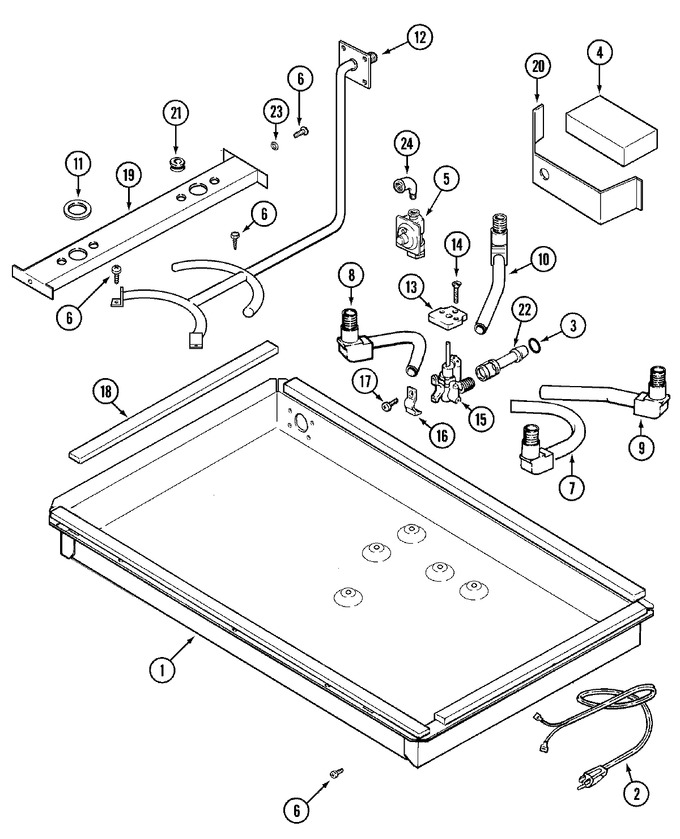

01 - Body
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 705802 | Box, Burner | 1 |
|
- | ||||
| 2 | Y04100513 | Harness, Switch | 3 |
|
- | ||||
| 2 | Y705805 | Cord, Power | 1 |
|
- | ||||
| 2 | 705832 | Harness, Switch | 1 |
|
- | ||||
| 3 | 705833 | Relief, Strain | 1 |
|
- | ||||
| 4 | 705824 | Harness, High Voltage | 1 |
|
- | ||||
| 4 | Y705823 | Module, Spark----na | 1 |
|
$ 213.91 | ||||
| 5 | Y705894 | Regulator, Pressure - Nat Gas | 1 |
|
- | ||||
| 6 | WP90767 | Screw (Replaces: Y700502) | 1 |
|
Immediately | $ 7.04 | |||
| 7 | Y705815 | Tube, Burner (rf) | 1 |
|
- | ||||
| 8 | 705813 | Tube, Burner (lf)---na | 1 |
|
- | ||||
| 9 | Y705816 | Tube, Burner (rr) | 1 |
|
- | ||||
| 10 | 705814 | Tube, Burner (lr) | 1 |
|
- | ||||
| 11 | 705818 | Nut, Burner Tube (sm/lg) | 1 |
|
- | ||||
| 12 | 705856 | Manifold | 1 |
|
- | ||||
| 13 | Y705861 | Switch, Valve | 1 |
|
$ 56.09 | ||||
| 14 | Y705862 | Screw, Switch | 1 |
|
- | ||||
| 15 | 705858 | Seal, Valve | 1 |
|
- | ||||
| 15 | Y705881 | Valve (rf) | 1 |
|
- | ||||
| 15 | 705857 | Valve (lf) | 1 |
|
- | ||||
| 15 | 705883 | Valve (lr) | 1 |
|
- | ||||
| 15 | Y705882 | Valve (rr) | 1 |
|
- | ||||
| 16 | 705859 | Bracket, Valve | 1 |
|
- | ||||
| 17 | 705860 | Screw, Valve | 1 |
|
- | ||||
| 18 | 705829 | Tape, Seal Silicone | 1 |
|
- | ||||
| 19 | 705825 | Support | 1 |
|
- | ||||
| 20 | 705843 | Baffle | 1 |
|
- | ||||
| 21 | 705831 | Grommet, Insulator | 1 |
|
- | ||||
| 22 | 705830 | Air Mixer (lg) | 1 |
|
- | ||||
| 22 | Y705822 | Air Mixer (sm) | 1 |
|
- | ||||
| 23 | 715910 | Washer, Lock | 1 |
|
- | ||||
| 24 | 705838 | Fitting, Pipe | 1 |
|
- | ||||
| NI | Y705879 | 0-ring (mixer) | 1 |
|
- | ||||
| NI | 708765 | Screw | 1 |
|
- |
