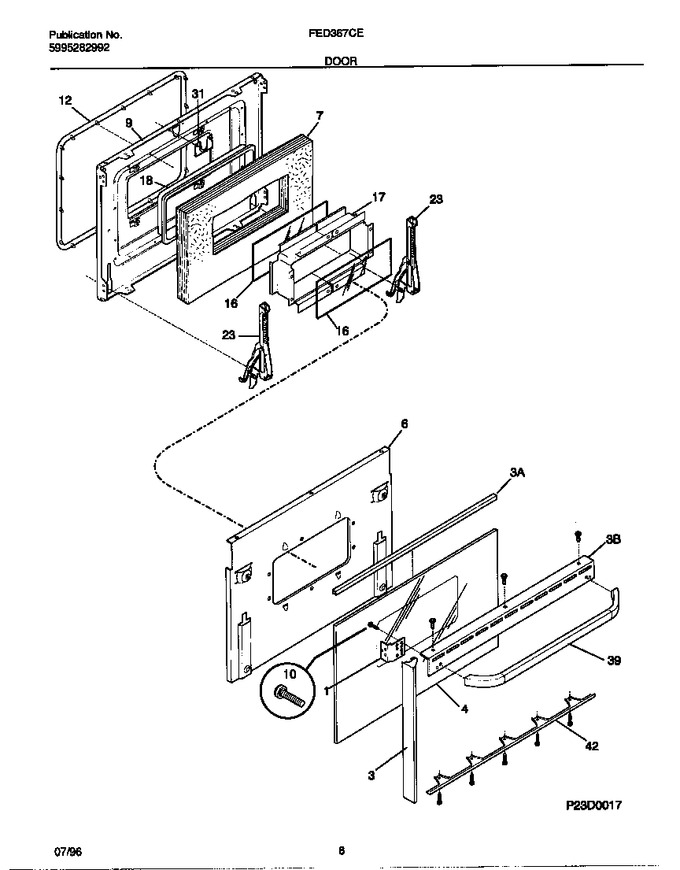

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318043100		Bracket-trim, Handle, (2)				$ 52.87
3	318049207		Trim-oven Door, Almond		Appelez-nous	-
3	5303311198		Trim-oven Door, Almond, Lower		Appelez-nous	-
3	318028900		Trim-oven Door				$ 34.82
4	318041103		Glass-oven Door, Almond, Outer		Appelez-nous	-
6	318056802		Shield-insulation		Appelez-nous	-
7	318106001		Insulation-door		Appelez-nous	-
10	3051070		Screw, Hex Washer Head, 10-24 X 7/16, Special		Appelez-nous	-
12	318053103		Seal-oven Door   (Replaces: 5303311152)			Immediately	$ 150.03
16	318041603		Glass-oven Door, (2)				$ 95.24
17	318042102		Spacer-glass		Appelez-nous	-
18	318053001		Seal-window		Appelez-nous	-
23	318024700		Hinge		Appelez-nous	-
31	5303310536		Latch-door				$ 30.66
39	5303311197		Handle-door, Almond, Oven		Appelez-nous	-
42	318049003		Trim-oven Door, Almond, Upper		Appelez-nous	-
*40420	5303300265		Screw, 8-18 X 1/2				$ 15.17
*40421	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
*40422	5303311306		Screw, 8-18 X 3/8		Appelez-nous	-
9A	318048800		Liner-oven Door		Appelez-nous	-
9B	5308007939		Plug, Door Liner (not Illustrated)		Appelez-nous	-
