View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

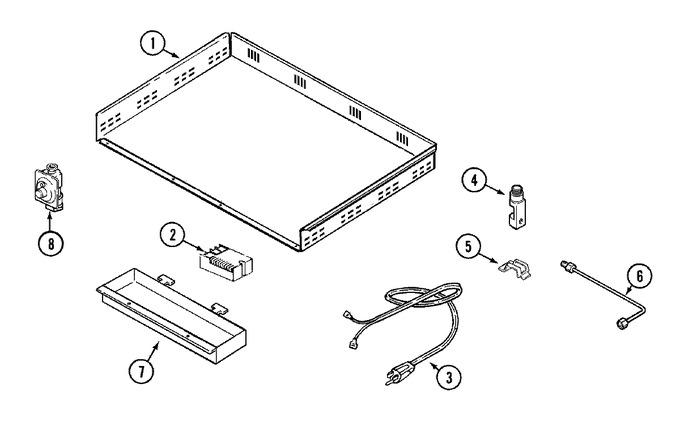

01 - Burner Box
02 - Control Panel
03 - Top Assembly
04 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71003165 | Housing, Burner Box | 10 |
|
- | ||||
| 2 | WPW10475147 | Module, Spark (Replaces: 71002783) | 10 |
|
Immediately | $ 214.42 | |||
| 2 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 3 | 71003145 | Cord, Power | 10 |
|
- | ||||
| 4 | 71002720 | Holder W/orifice (6.5k) | 10 |
|
- | ||||
| 4 | 71002722 | Holder W/orifice (10k) | 10 |
|
- | ||||
| 4 | 71003150 | Holder W/orifice (15k) | 10 |
|
- | ||||
| 4 | 71002721 | Holder W/orifice (9.1k) | 10 |
|
- | ||||
| 5 | 71003147 | Bracket, Orifice Holder | 10 |
|
- | ||||
| 5 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 6 | 71003148 | Tube, Burner (ft) | 10 |
|
- | ||||
| 6 | 71003149 | Tube, Burner (rr) | 10 |
|
- | ||||
| 7 | 71003146 | Cover, Module | 10 |
|
- | ||||
| 7 | Y04100254 | Relief, Strain | 10 |
|
- | ||||
| 7 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 8 | W11106948 | Regulator, Pressure (Replaces: Y704545) | 10 |
|
Immediately | $ 215.01 |
