SELECT A DIAGRAM

01 - Burner Box


02 - Control Panel


03 - Top Assembly


04 - Wiring Information

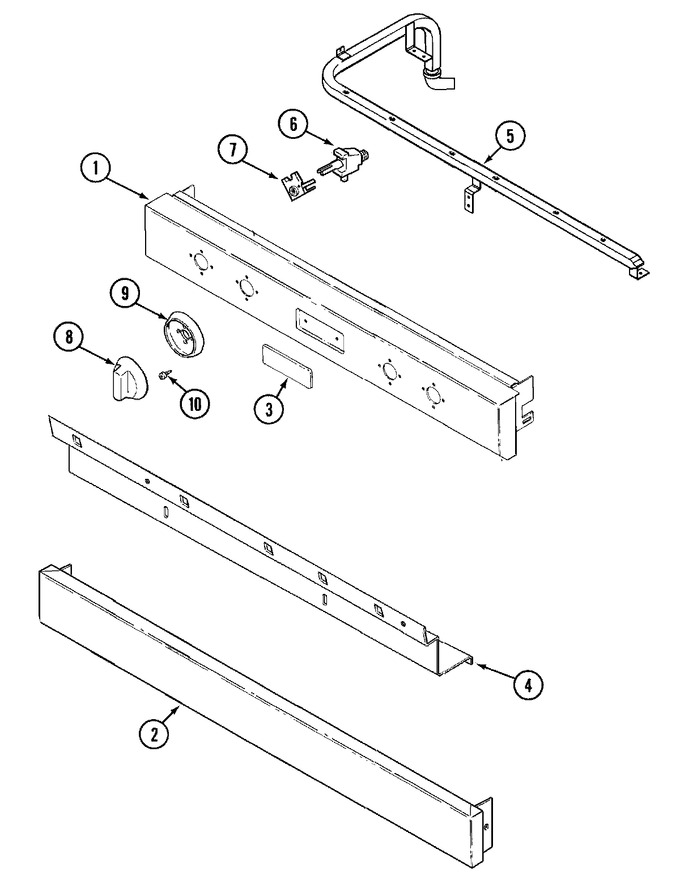

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3400202		Screw   (Replaces: Y706197)	10			$ 13.65
1	71001054		Nut, Retainer (1/4)	10	Appelez-nous	-
1	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 7.04
2	71003377		Panel, Control (lwr-red)	10	Appelez-nous	-
2	74009628		Extend, Panel	10	Appelez-nous	-
3	7103P166-60		Palnut   (Replaces: 715500)	10			$ 15.91
3	74006889		Nameplate (stl)	12			$ 43.24
3	71001894		Nameplate (j/a)	10	Appelez-nous	-
4	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 7.04
4	71003163		Support, Panel	10	Appelez-nous	-
4	Y04100776		Grommet, Screw	10	Appelez-nous	-
5	71003127		Pipe, Manifold	10	Appelez-nous	-
5	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 7.04
6	Y712320		Screw & Washer	10	Appelez-nous	-
6	71003134		Valve, Burner (lg)	10	Appelez-nous	-
6	71003136		Valve, Burner (sm)	10	Appelez-nous	-
6	71003135		Valve, Burner (smr)	10	Appelez-nous	-
7	WP74005954		Switch, Valve   (Replaces: 71002670)	10			$ 117.71
8	WP71001057		Knob, Valve (blk)   (Replaces: 71001057)	10			$ 22.21
9	71002978		Bezel, Knob	10	Appelez-nous	-
10	W11233072		Screw (no.8ab)   (Replaces: 71001183)	10		Immediately	$ 12.62
NI	71003140		Wire, White (16``)	10	Appelez-nous	-
NI	71003137		Wire, White (24``)	10	Appelez-nous	-
NI	71001740		Wire Wht (25``)	10	Appelez-nous	-
NI	71003162		Wire, Harness	10	Appelez-nous	-
NI	71002782		Guide, Cooking	10	Appelez-nous	-
NI	71002938		Guide, Cooking (fch)	10	Appelez-nous	-
NI	71003173		Manual, Use & Care (bluecreek)	10	Appelez-nous	-
NI	16000326		Guide, Quick Ref - Jenn-air	10	Appelez-nous	-
NI	71003164		Lp Conversion Kit	10	Appelez-nous	-
NI	71003139		Wire, White (14``)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
