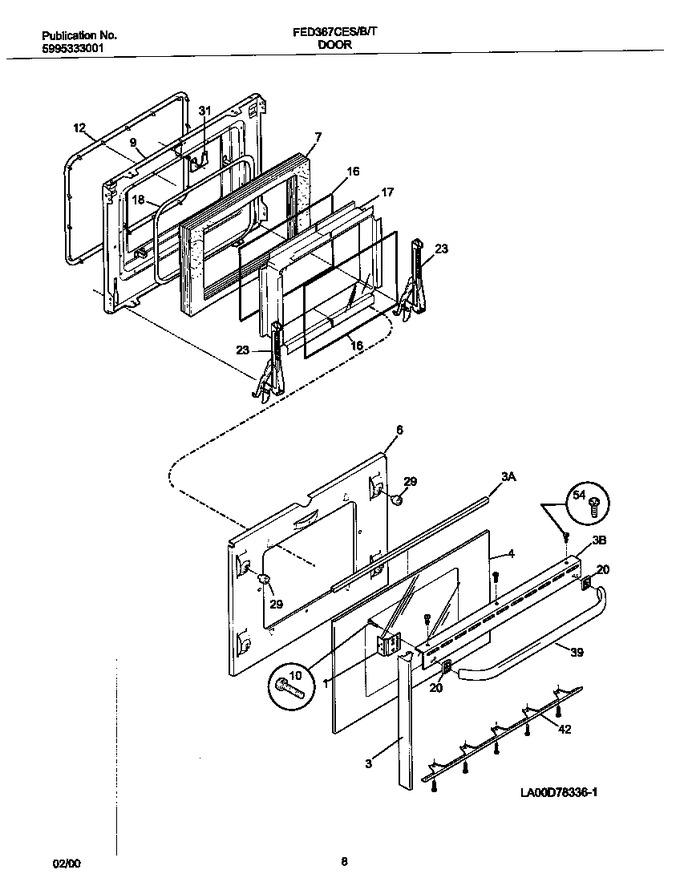

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318043100		Bracket-trim, Handle, (2)				$ 52.87
3	318049207		Trim-oven Door,almond ,side ,(2)		Appelez-nous	-
3	318028900		Trim-oven Door,upper				$ 34.82
4	318041103		Glass-oven Door, Almond, Outer		Appelez-nous	-
6	318056802		Shield-insulation		Appelez-nous	-
7	318106001		Insulation-door		Appelez-nous	-
9	318048802		Liner-oven Door		Appelez-nous	-
10	732022890		Screw Handle,10-24 X 5/8   (Replaces: 5303324305)			Immediately	$ 1.84
12	318053103		Seal-oven Door			Immediately	$ 150.03
16	318041603		Glass-oven Door,inner ,(2)				$ 95.24
17	318042102		Spacer-glass		Appelez-nous	-
18	318053001		Seal-window		Appelez-nous	-
20	318014302		Spacer,handle ,almond ,(2)		Appelez-nous	-
23	5303311215		Hinge-oven Door, Assy		Appelez-nous	-
29	318147410		Bumper Base Ete>24``		Appelez-nous	-
31	5303310536		Latch-door				$ 30.66
39	316091120		Handle-door, Almond, Oven		Appelez-nous	-
42	5303311198		Trim-oven Door, Almond, Lower		Appelez-nous	-
54	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
*15928	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*15929	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
3A	318049021		Trim-oven Door		Appelez-nous	-
3B	318049064		Trim-door Handle,almond ,upper		Appelez-nous	-
