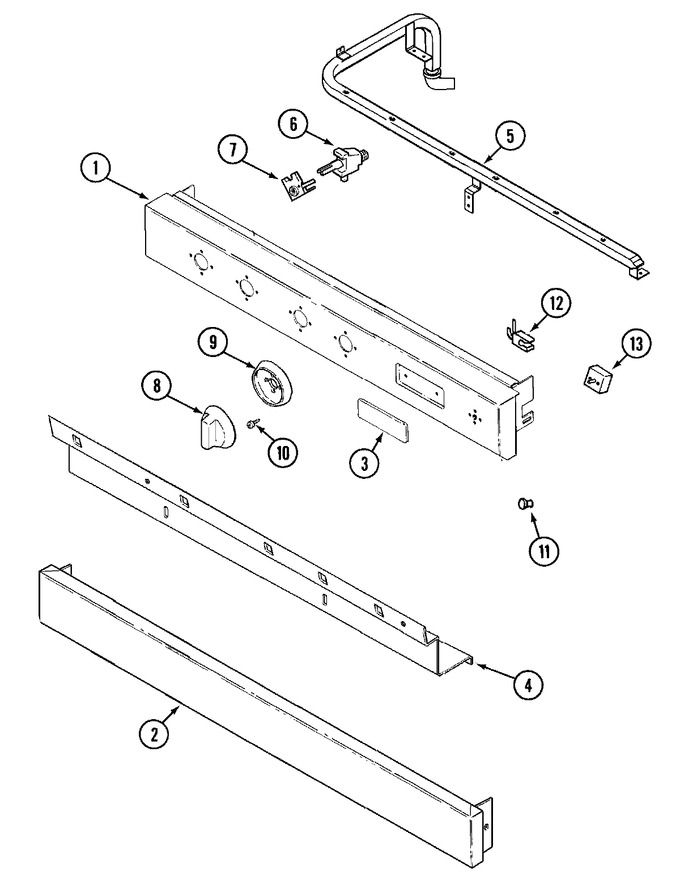

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3400202 | Screw (Replaces: Y706197) | 10 |
|
$ 13.65 | ||||
| 1 | 71001054 | Nut, Retainer (1/4) | 10 |
|
- | ||||
| 1 | 71003171 | Panel, Control (upr-jade) | 10 |
|
- | ||||
| 1 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 2 | 71003172 | Panel, Control (lwr-jade) | 10 |
|
- | ||||
| 3 | 74006889 | Nameplate (stl) | 13 |
|
$ 43.24 | ||||
| 3 | 71001894 | Nameplate (j/a) | 10 |
|
- | ||||
| 3 | 7103P166-60 | Palnut (Replaces: 715500) | 10 |
|
$ 15.91 | ||||
| 4 | 71003166 | Support, Control Panel | 10 |
|
- | ||||
| 4 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 4 | Y04100776 | Grommet, Screw | 10 |
|
- | ||||
| 5 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 5 | 71003129 | Pipe, Mainfild | 10 |
|
- | ||||
| 6 | Y712320 | Screw & Washer | 10 |
|
- | ||||
| 6 | 71003135 | Valve, Burner (smr) | 10 |
|
- | ||||
| 6 | 71003136 | Valve, Burner (sm) | 10 |
|
- | ||||
| 6 | 71003134 | Valve, Burner (lg) | 10 |
|
- | ||||
| 7 | WP74005954 | Switch, Valve (Replaces: 71002670) | 10 |
|
$ 117.71 | ||||
| 8 | WP71001057 | Knob, Valve (blk) (Replaces: 71001057) | 10 |
|
$ 22.21 | ||||
| 8 | 71003143 | Knob, Griddle | 10 |
|
- | ||||
| 9 | 71002978 | Bezel, Knob | 10 |
|
- | ||||
| 10 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 12 | 7407P100-60 | Light, Indicator | 10 |
|
- | ||||
| 13 | W11168859 | Switch, Infinite (Replaces: 71003132) | 10 |
|
$ 152.90 | ||||
| NI | 71003137 | Wire, White (24``) | 10 |
|
- | ||||
| NI | 71003139 | Wire, White (14``) | 10 |
|
- | ||||
| NI | 71003140 | Wire, White (16``) | 10 |
|
- | ||||
| NI | 71003133 | Wire, Harness | 10 |
|
- | ||||
| NI | 71002782 | Guide, Cooking | 10 |
|
- | ||||
| NI | 71002938 | Guide, Cooking (fch) | 10 |
|
- | ||||
| NI | 71003173 | Manual, Use & Care (bluecreek) | 10 |
|
- | ||||
| NI | 16000326 | Guide, Quick Ref - Jenn-air | 10 |
|
- | ||||
| NI | 71003164 | Lp Conversion Kit | 10 |
|
- | ||||
| NI | 71001740 | Wire Wht (25``) | 10 |
|
- |
