SELECT A DIAGRAM

01 - Body


02 - Top Assembly


03 - Wiring Information

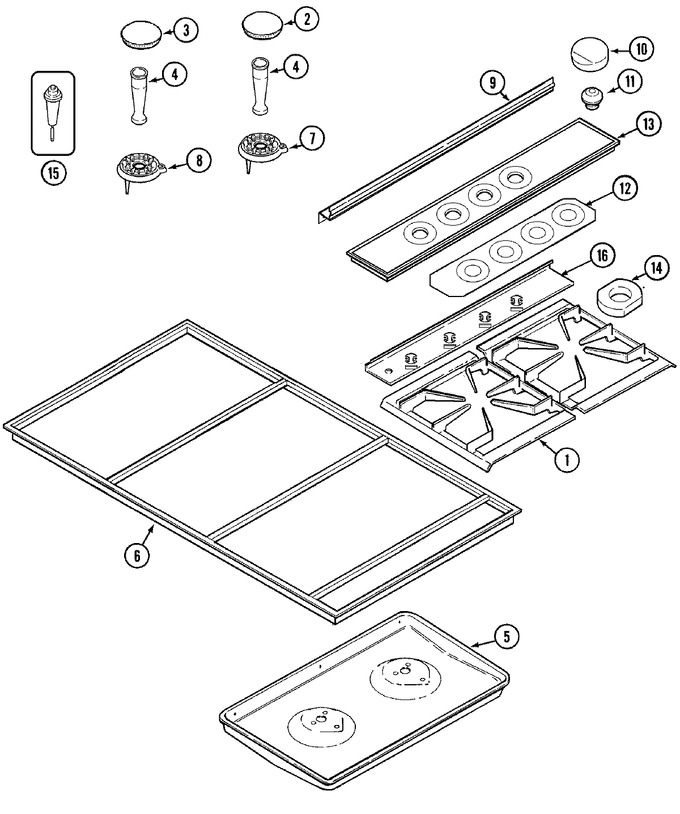

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	71001006		Grate (gray)	10	Appelez-nous	-
2	71002790		Cap, Burner (smr-gry)	10	Appelez-nous	-
3	71002739		Cap, Burner (lg-gry)	10	Appelez-nous	-
4	WP7538P003-60		Venturi   (Replaces: 71002747)	10			$ 88.55
5	71002789		Pan, Aeration (wht)	10	Appelez-nous	-
6	71002940		Top (stnls)	10	Appelez-nous	-
7	WP7540P028-60		Base, Burner (smr)   (Replaces: 71002784)	10			$ 48.41
7	74006032		Nut, Burner Base	10	Appelez-nous	-
8	71002743		Base, Burner (lg)	10	Appelez-nous	-
8	74006032		Nut, Burner Base	10	Appelez-nous	-
9	71002566		Bracket, Control Panel	10	Appelez-nous	-
10	71002373		Knob, Burner (wht)	10			$ 16.56
11	71002371		Grommet, Spill (gry)	10	Appelez-nous	-
12	71002580		Lens, Light	10	Appelez-nous	-
13	71002931		Panel, Control (wht)	10	Appelez-nous	-
14	Y706061		Box, Light	10			$ 51.50
15	WP7432P109-60		Igniter   (Replaces: 71002724)	10			$ 47.83
16	71002559		Plate, Switch	10	Appelez-nous	-
16	71002568		Plate, Switch	11	Appelez-nous	-
16	71003219		Fastener, Push-in	11	Appelez-nous	-
NI	71002943		Harness (spark/lwr)	10	Appelez-nous	-
NI	71001159		Wire, Brown (38``)	10	Appelez-nous	-
NI	Y04100536		Wire, White (30``)	10	Appelez-nous	-
NI	Y04100535		Wire, White (18``)	10	Appelez-nous	-
NI	Y04100378		Wire, Orange (18``)	10	Appelez-nous	-
NI	71002782		Guide, Cooking	10	Appelez-nous	-
NI	71002936		Manual, Use & Care	10	Appelez-nous	-
NI	71002937		Manual, Use & Care (fch)	10	Appelez-nous	-
NI	71002938		Guide, Cooking (fch)	10	Appelez-nous	-
NI	16000326		Guide, Quick Ref - Jenn-air	10	Appelez-nous	-
NI	71002941		Kit, Lp Orifice	10	Appelez-nous	-
NI	71002942		Harness (light/upr)	10	Appelez-nous	-
