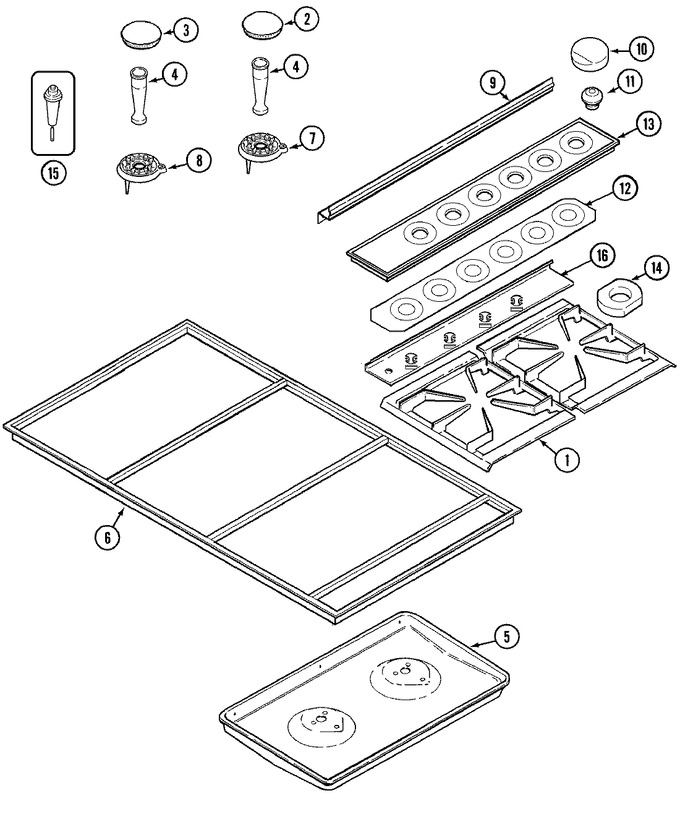

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	71001004		Grate (blk)	10	Appelez-nous	-
2	71002738		Cap, Burner (sm-blk)	10	Appelez-nous	-
2	71002787		Cap, Burner (smr-blk)	10	Appelez-nous	-
3	71002740		Cap, Burner (lg-blk)	10	Appelez-nous	-
4	WP7538P003-60		Venturi   (Replaces: 71002747)	10			$ 88.55
5	71002951		Pan, Aeration (blk)	10	Appelez-nous	-
5	71002949		Pan, Aeration (blk)	10	Appelez-nous	-
6	71002939		Top (stnls)	10	Appelez-nous	-
7	WP7540P028-60		Base, Burner (smr)   (Replaces: 71002784)	10			$ 48.41
7	71002744		Base, Burner (sm)	10	Appelez-nous	-
8	71002743		Base, Burner (lg)	10	Appelez-nous	-
9	71002566		Bracket, Control Panel	10	Appelez-nous	-
10	WP71002372		Knob, Burner (blk)   (Replaces: 71002372)	10		Immediately	$ 18.16
11	WP8008P071-60		Grommet, Spill (blk)   (Replaces: 71002370)	10			$ 8.02
12	71002580		Lens, Light	10	Appelez-nous	-
13	71002932		Panel, Control (blk)	10	Appelez-nous	-
14	Y706061		Box, Light	10			$ 51.50
15	WP7432P109-60		Igniter   (Replaces: 71002724)	10			$ 47.83
16	71002559		Plate, Switch	10	Appelez-nous	-
16	71003219		Fastener, Push-in	11	Appelez-nous	-
16	71002568		Plate, Switch	11	Appelez-nous	-
NI	16000326		Guide, Quick Ref - Jenn-air	10	Appelez-nous	-
NI	71002955		Kit, Lp Orifice	10	Appelez-nous	-
NI	71002942		Harness (light/upr)	10	Appelez-nous	-
NI	71002956		Harness (spark-lwr)	10	Appelez-nous	-
NI	74004278		Wire, Wht/rd	10	Appelez-nous	-
NI	Y04100378		Wire, Orange (18``)	10	Appelez-nous	-
NI	71001159		Wire, Brown (38``)	10	Appelez-nous	-
NI	74004277		Wire, Wht/yw	10	Appelez-nous	-
NI	Y04100536		Wire, White (30``)	10	Appelez-nous	-
NI	Y04100535		Wire, White (18``)	10	Appelez-nous	-
NI	71002782		Guide, Cooking	10	Appelez-nous	-
NI	71002937		Manual, Use & Care (fch)	10	Appelez-nous	-
NI	71002936		Manual, Use & Care	10	Appelez-nous	-
NI	71002938		Guide, Cooking (fch)	10	Appelez-nous	-
