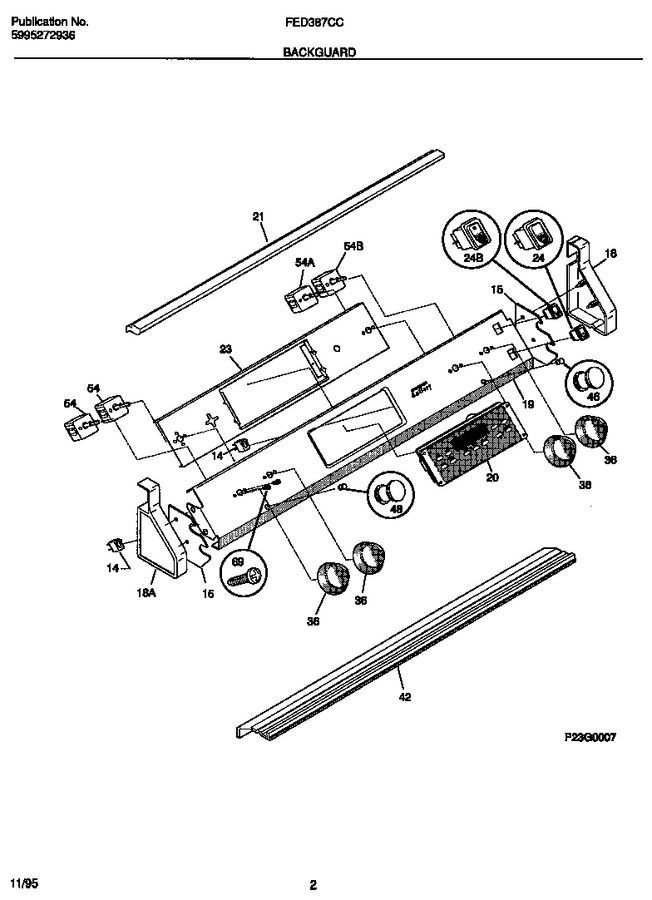

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5303051849		Light-lamp/indicator, Oven		Appelez-nous	-
15	5303311123		Support-backguard, (2)		Appelez-nous	-
18	5303304671		End Cap, White, Lh		Appelez-nous	-
18	5303304668		End Cap, White, Rh		Appelez-nous	-
19	318005520		Panel-control, White		Appelez-nous	-
20	318012500		Clock/timer, Electronic		Appelez-nous	-
21	5303304688		Trim-backguard, Top		Appelez-nous	-
23	318015000		Bracket-clock Mtg		Appelez-nous	-
24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
24	316083100		Switch-rocker, White, Dual Element, (1)   (Replaces: 316076301)				$ 89.31
36	318016300		Knob-surface Unit, White		Appelez-nous	-
36	318016307		Knob-surface Unit, Lr & Lf				$ 49.30
42	5303304690		Trim-vent		Appelez-nous	-
46	5303271239		Lens-light/lamp, Indicator		Appelez-nous	-
54	5500-200		Switch-surface Unit, Double   (Replaces: 5303311186)			Immediately	$ 54.85
54	5303300157		Switch-surface Unit, Small		Appelez-nous	-
54	318078100		Switch-surface Unit, Large		Appelez-nous	-
69	5303323137		Screw-switch Mtg, Sw To Cntl Pnl, (6)   (Replaces: 5303305528)				$ 11.88
