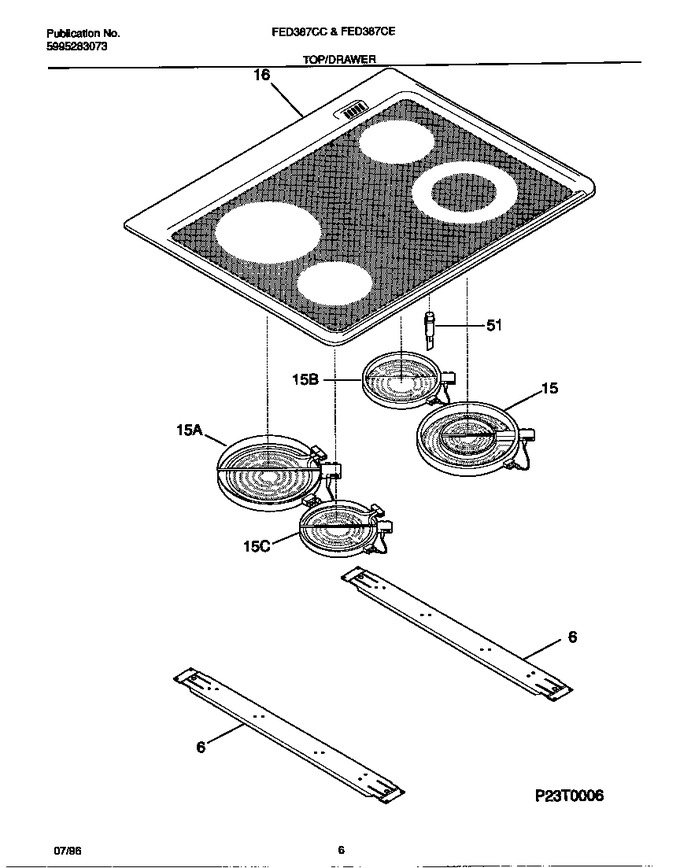

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	5303311190		Support-element		Appelez-nous	-
15	318050407		Element-surface, 2000/1000w		Appelez-nous	-
15	5303297143		Element-surface, Halogen, Large/8 Inch, W/limit Switch		Appelez-nous	-
15	5303297142		Element-surface, Halogen, Small/6 Inch, W/limit Switch		Appelez-nous	-
15	318198817		Element-surface, 1200w   (Replaces: 318050402)			Immediately	$ 192.78
16	318079500		Main Top, Glass, White		Appelez-nous	-
51	5303297484		Light-indicator		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
