SELECT A DIAGRAM

01 - Cover

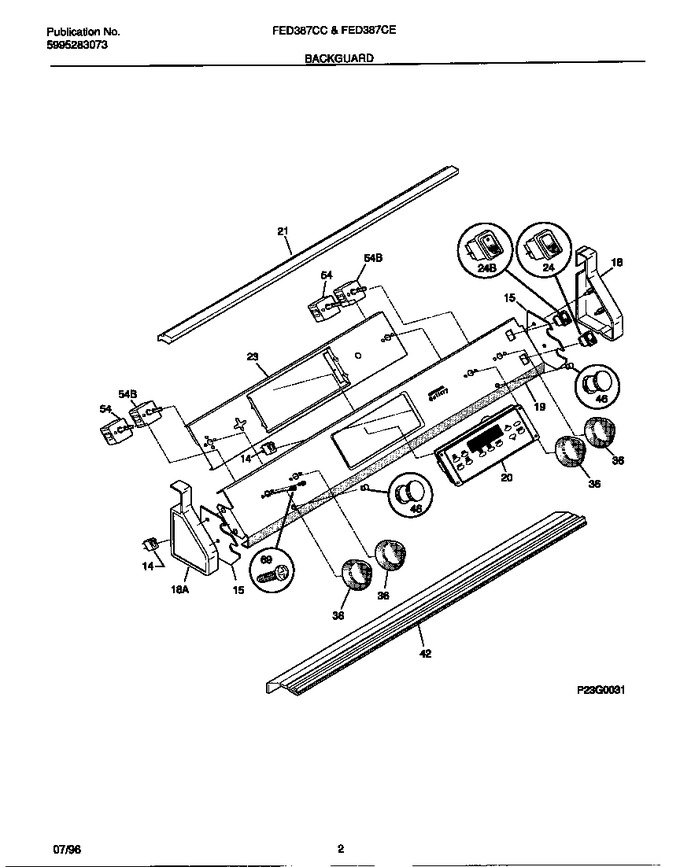

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5303051849		Light/lamp-oven, Indicator		Appelez-nous	-
15	5303311123		Support-backguard, (2)		Appelez-nous	-
18	5303304668		End Cap, White, Rh		Appelez-nous	-
18	5303304671		End Cap, White, Lh		Appelez-nous	-
19	318005509		Panel-control		Appelez-nous	-
20	318012901		Clock/timer, Electronic		Appelez-nous	-
21	5303304688		Trim-backguard, Top		Appelez-nous	-
23	318015501		Bracket-clock Mtg		Appelez-nous	-
24	316083100		Switch-rocker, White, Dual Element, (1)   (Replaces: 316076301)				$ 89.31
24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
42	318106901		Trim-vent, White		Appelez-nous	-
46	5303271239		Lens-light/lamp, Indicator		Appelez-nous	-
54	318120501		Switch-surface Unit, Small, (3)				$ 244.13
36A	318016300		Knob-surface Unit, White, (3)		Appelez-nous	-
36B	318016307		Knob-surface Unit, White, Lr & Lf				$ 49.30
69A	5303292005		Screw-switch Mtg, 8-32 X 5/32, (2)		Appelez-nous	-
69B	5303323137		Screw, Switch Mtg, (6)   (Replaces: 5303305528)				$ 11.88

    View Diagram in Separate Window       Print Part List
