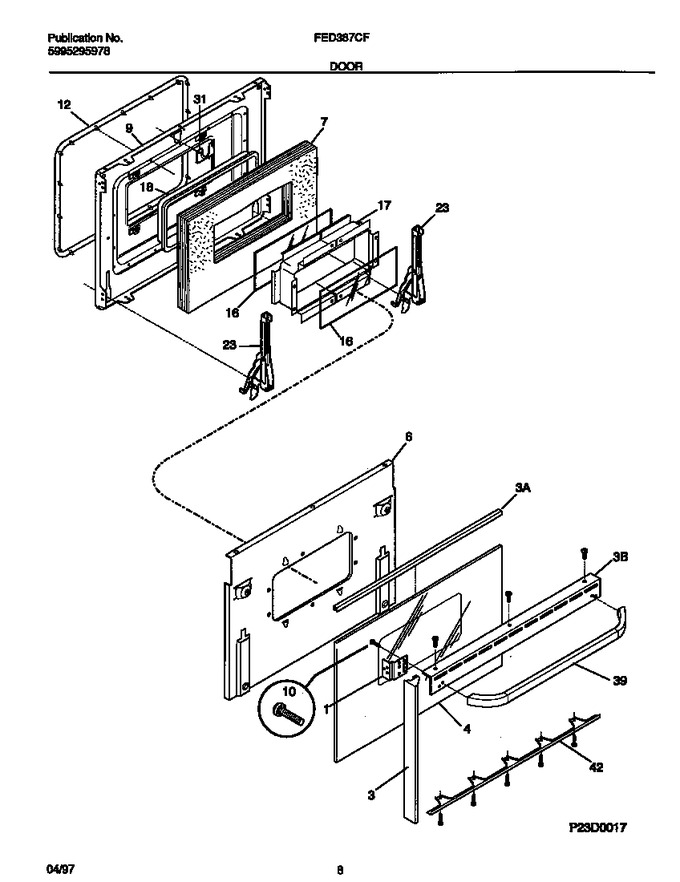

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318043100		Bracket-trim, Handle, (2)				$ 52.87
3	318028900		Trim-oven Door				$ 34.82
3	318049205		Trim-oven Door, Black, Side		Appelez-nous	-
3	5303311200		Trim,oven Door ,black ,lower		Appelez-nous	-
4	318041105		Glass-oven Door, Black, Outer		Appelez-nous	-
6	318056810		Shield-wool		Appelez-nous	-
7	318106001		Insulation-door		Appelez-nous	-
9	318048802		Liner-oven Door		Appelez-nous	-
10	732022890		Screw, 10-24 X 5/8   (Replaces: 5303324305)			Immediately	$ 1.84
12	318053103		Seal-oven Door   (Replaces: 5303311152)			Immediately	$ 150.03
16	318041603		Glass-oven Door,inner ,(2)				$ 95.24
17	318042102		Spacer-glass		Appelez-nous	-
18	318053001		Seal-window		Appelez-nous	-
31	5303310536		Latch-door				$ 30.66
39	318014300		Spacer-handle, Black, (2) (not Illustrated)				$ 36.44
39	316091121		Handle-door, Gray, Oven		Appelez-nous	-
42	318049019		Trim-oven Door, Black		Appelez-nous	-
42	5303308456		Screw, 8-18 X 0.531, Door Frame (not Illustrated)				$ 10.06
*66618	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*66619	5303300414		Spacer, Cork & Rubber				$ 13.18
*66620	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*66621	5303311156		Bumper-door, Cork & Rubber		Appelez-nous	-
*66622	5303311306		Screw, 8-18 X 3/8		Appelez-nous	-
*66623	5308007939		Plug, Door Liner		Appelez-nous	-
23A	5303311215		Hinge-oven Door, Assy		Appelez-nous	-
23B	3201899		Washer, Hinge Assy, (4) (not Illustrated)		Appelez-nous	-
