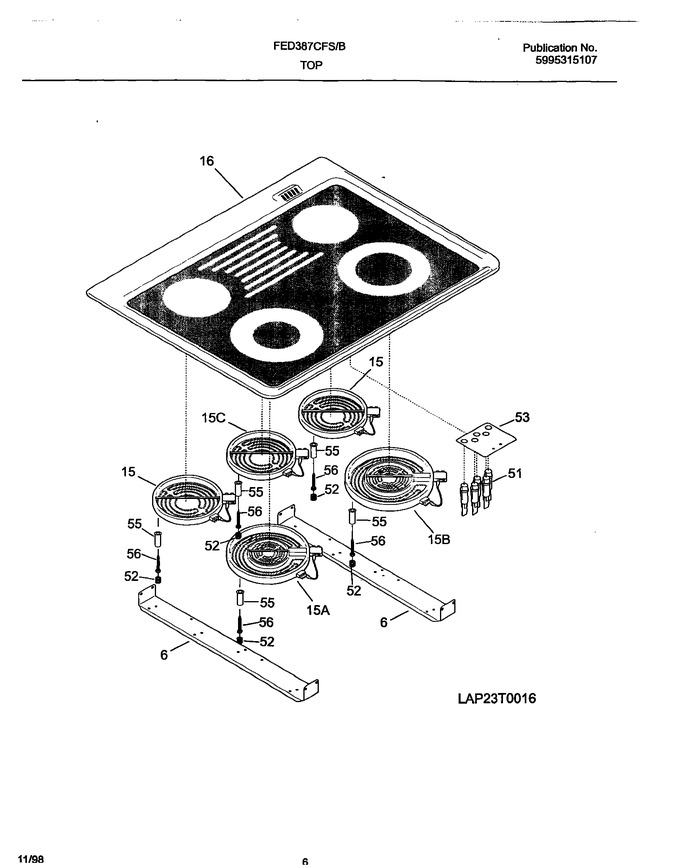

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318111100		Support-element, (2)		Appelez-nous	-
16	318079506		Main Top, Glass, Black				$ 626.59
52	5303317177		Spring-element Mtg				$ 12.74
53	318125900		Bracket-indicator		Appelez-nous	-
55	5303317178		Spacer-element				$ 2.42
56	5303317179		Screw-element, 6 X 3/4				$ 2.42
F15	318198817		Element-surface,1200w   (Replaces: 318178100)			Immediately	$ 192.78
F15A	318178000		Element-surface, 700/2100w		Appelez-nous	-
F15B	389082702		Element Surface 1000/2100w   (Replaces: 318178001)				$ 284.39
F15C	318178103		Element-warmer/120w		Appelez-nous	-
F51	5303297484		Light-indicator, Hot Surface		Appelez-nous	-
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
