SELECT A DIAGRAM

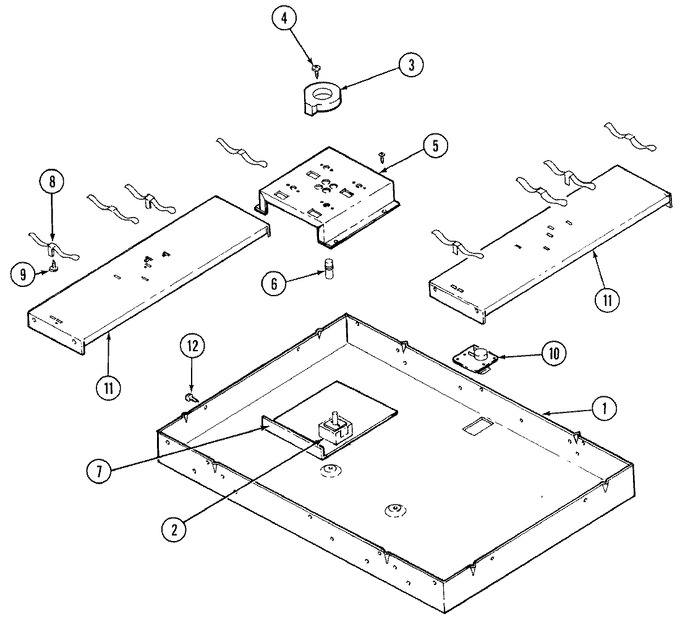

01 - Body
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP71001171 | Screw (Replaces: Y04100522) | 11 |
|
$ 6.26 | ||||
| 1 | 04100421 | Burner Box | 11 |
|
- | ||||
| 2 | W11088181 | Switch, Infinite (Replaces: 71001166) | 12 |
|
Immediately | $ 107.44 | |||
| 2 | W11120791 | Switch, Infinite (rf) (Replaces: Y04100360) | 11 |
|
Immediately | $ 98.55 | |||
| 2 | W11120791 | Switch, Infinite (lr) (Replaces: Y04100429) | 11 |
|
Immediately | $ 98.55 | |||
| 2 | W11120791 | Switch, Infinite (rr & Lf) (Replaces: Y04100426) | 11 |
|
Immediately | $ 98.55 | |||
| 3 | Y04100416 | Light Box | 11 |
|
$ 54.72 | ||||
| 4 | 71002058 | Screw, 8-32 (Replaces: Y04100363) | 11 |
|
$ 5.82 | ||||
| 5 | Y04100417 | Plate, Switch Mtg. | 11 |
|
- | ||||
| 6 | Y706091 | Wire, Pilot Light | 11 |
|
- | ||||
| 6 | Y706125 | Light, Indicator | 11 |
|
- | ||||
| 7 | 04100430 | Shield, Inf. | 11 |
|
- | ||||
| 8 | 74007134 | Spring, Element Support (Replaces: Y04100418) | 11 |
|
$ 10.51 | ||||
| 9 | WP74004005 | Screw (Replaces: Y708359) | 11 |
|
$ 6.95 | ||||
| 10 | 04100420 | Wire Cable Assy | 11 |
|
- | ||||
| 10 | 702731 | Screw | 11 |
|
- | ||||
| 11 | Y04100419 | Crossbar, Elem Support | 11 |
|
- | ||||
| 12 | WP7101P309-60 | Screw (Replaces: Y04100501) | 11 |
|
Immediately | $ 6.26 |
