01 - Body
02 - Top
New Model Search:

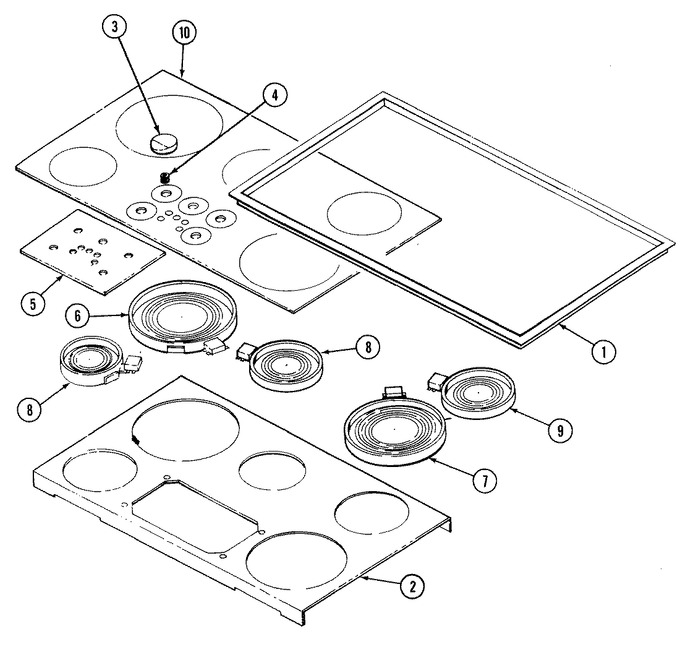

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 04100439 | Top, Frame (black) | 11 |
|
- | ||||
| 2 | 04100444 | Panel, Back | 11 |
|
- | ||||
| 2 | Y04100843 | Pad, Frame | 11 |
|
- | ||||
| 3 | Y04100412 | Knob, Inf. (white) | 11 |
|
- | ||||
| 3 | Y04100366 | Knob, Infinite (blk) | 11 |
|
$ 16.21 | ||||
| 4 | WPY706102 | Grommet, Infinite Switch (Replaces: Y706102) | 11 |
|
Immediately | $ 6.78 | |||
| 5 | 04100445 | Decal, Backlight | 11 |
|
- | ||||
| 6 | Y04100413 | Element, 2400w | 11 |
|
- | ||||
| 7 | Y04100448 | Element, Halogen 2200w | 11 |
|
- | ||||
| 8 | W10823704 | Element, 1200w (Replaces: Y04100415) | 11 |
|
Immediately | $ 309.01 | |||
| 9 | W10823693 | Element, 1700w (Replaces: Y04100438) | 11 |
|
Immediately | $ 205.87 | |||
| 10 | 04100437 | Cooktop, Glass (black)----na | 11 |
|
- | ||||
| 10 | CCRC467UA | Manual, Use & Care | 11 |
|
- |
