SELECT A DIAGRAM

01 - Cover

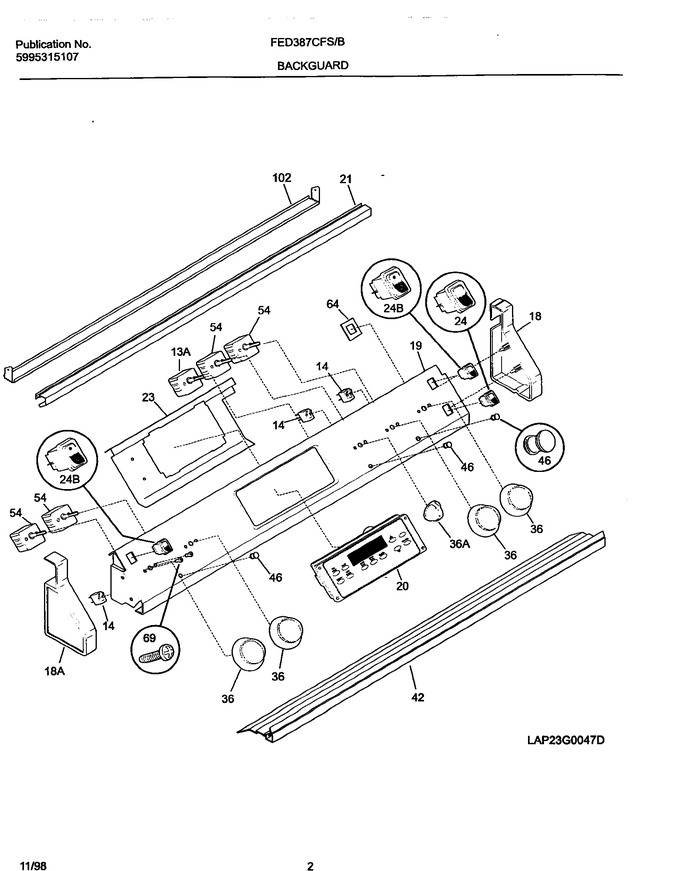

03 - Backguard


05 - Body


07 - Top


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5303051533		Light-lamp/indicator				$ 53.81
18	5303304668		End Cap, White, Rh		Appelez-nous	-
19	318005550		Panel-control		Appelez-nous	-
21	318027801		Trim-backguard, Top		Appelez-nous	-
23	318015020		Bracket-clock Mtg		Appelez-nous	-
36	318016300		Knob-surface Unit, White		Appelez-nous	-
42	318106901		Trim-vent, White		Appelez-nous	-
46	5308006417		Lens-light / Lamp, Indicator				$ 19.06
64	318112200		Plate		Appelez-nous	-
69	5303288565		Screw, Switch Mtg., 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
102	318055600		Bracket-mounting		Appelez-nous	-
13A	5304508926		Switch-warmer, Infinite   (Replaces: 316095500)			Immediately	$ 84.18
18A	5303304671		End Cap, White, Lh		Appelez-nous	-
36A	318165101		Knob-warmer,white		Appelez-nous	-
F20	318012901		Clock, Timer		Appelez-nous	-
F24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
F24B	316083100		Switch-rocker, White   (Replaces: 316076301)				$ 89.31
F54	318120501		Switch-surface Unit				$ 244.13
NI	5303323145		Nut		Appelez-nous	-
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
NI	08016432		Screw,8-18 X 3/8		Appelez-nous	-
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
NI	5303311124		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
