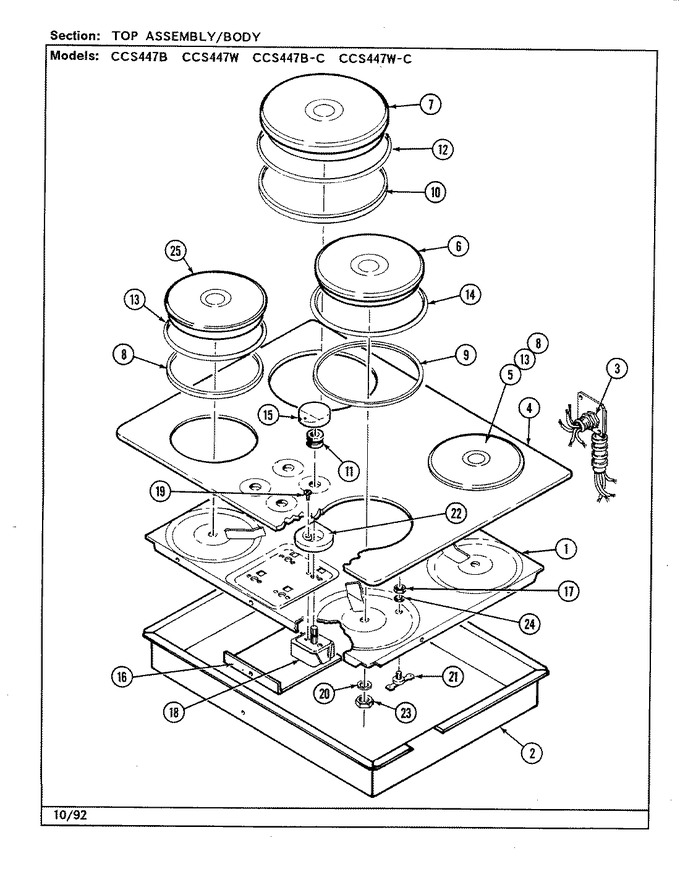

01 - Top Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	04100341		Panel Back	1	Appelez-nous	-
2	04100342		Burner Box	1	Appelez-nous	-
3	04100449		Wire Cable Assy	1	Appelez-nous	-
4	Y04100365		Glass, Cooktop (blk)	1	Appelez-nous	-
5	04100345		Element, Surface 145mm (2000w)	1	Appelez-nous	-
6	04100346		Element, Surface 180mm (2000w)	1	Appelez-nous	-
7	Y04100347		Element, Surface 220mm (3200w)	1	Appelez-nous	-
8	04100348		Gasket (small)	1	Appelez-nous	-
9	04100349		Seal, Large	1	Appelez-nous	-
10	Y04100350		Gasket, 220mm	1	Appelez-nous	-
11	04100373		Grommett	1	Appelez-nous	-
12	04100351		Collar, 220mm	1	Appelez-nous	-
13	04000006		Collar, Small (145mm)	1	Appelez-nous	-
14	04000007		Collar, 180mm (large)	1	Appelez-nous	-
15	Y04100366		Knob, Infinite (blk)	1			$ 16.21
16	04100353		Heat Shield	1	Appelez-nous	-
17	04100354		Nut, Hex----na	1	Appelez-nous	-
18	W11120791		Switch, Infinite (rf)   (Replaces: Y04100360)	1		Immediately	$ 98.55
18	W11120791		Switch, Infinite (1500w)   (Replaces: Y04100359)	1		Immediately	$ 98.55
18	W11120791		Switch Infinite (3200w)   (Replaces: Y04100361)	1		Immediately	$ 98.55
19	71002058		Screw, 8-32   (Replaces: Y04100363)	1			$ 5.82
20	04100364		Washer, No.8	1	Appelez-nous	-
21	Y04100080		Sensor, Glass Protector	1	Appelez-nous	-
22	Y706061		Box, Light	1			$ 51.50
23	04000003		Nut, Disc Element	1	Appelez-nous	-
23	WP90767		Screw   (Replaces: Y700502)	1		Immediately	$ 7.04
23	WP71001171		Screw   (Replaces: Y712004)	1			$ 6.26
24	704165		Box, Breaker	1	Appelez-nous	-
24	715910		Washer, Lock	1	Appelez-nous	-
24	702008		Breaker (30 Amp)	1	Appelez-nous	-
25	Y04100362		Element W/ring (small)	1	Appelez-nous	-
NI	16010241		Manual, Service	1	Appelez-nous	-
