SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Body


04 - Top


05 - Door

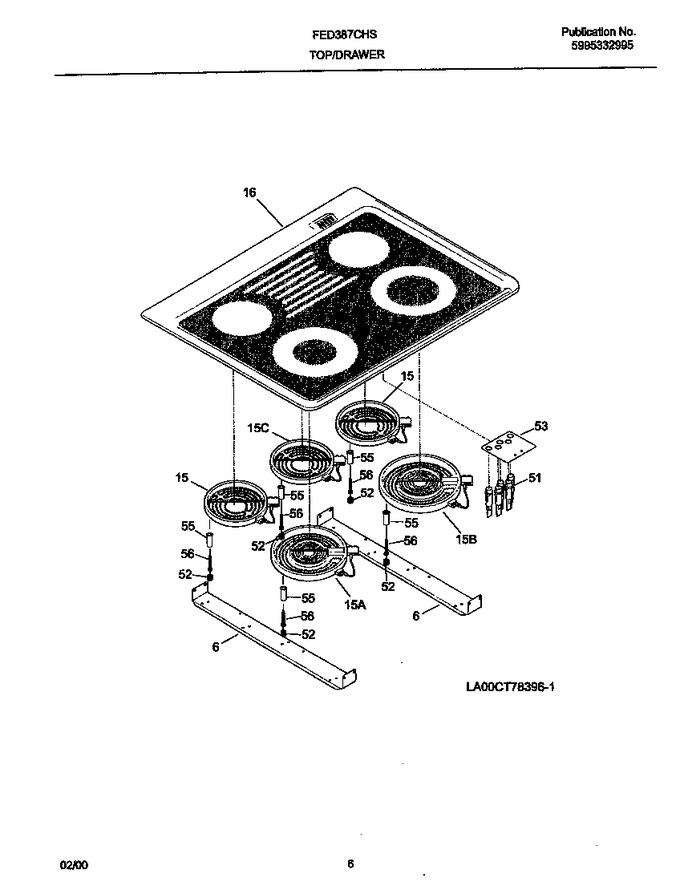

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318111101		Support		Appelez-nous	-
15	318178103		Element-surface W-zone,120v/100w		Appelez-nous	-
15	318178000		Element-surface,2100w		Appelez-nous	-
15	389082702		Element-surface,radiant ,dual ,2100w/1000w,limit Sw Incl   (Replaces: 318178001)				$ 284.39
15	318198817		Element-surface,radiant ,small/6 Inch ,1200w,1200w ,smal   (Replaces: 318178100)			Immediately	$ 192.78
16	318079509		Main Top,glass ,white		Appelez-nous	-
51	5303297484		Light-indicator, Hot Surface		Appelez-nous	-
52	5303317177		Spring-element Mtg				$ 12.74
53	318125930		Bracket-indicator Light,hot Surface		Appelez-nous	-
55	5303317178		Spacer-element				$ 2.42
56	5303317179		Screw-element, 6 X 3/4				$ 2.42
*60248	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
